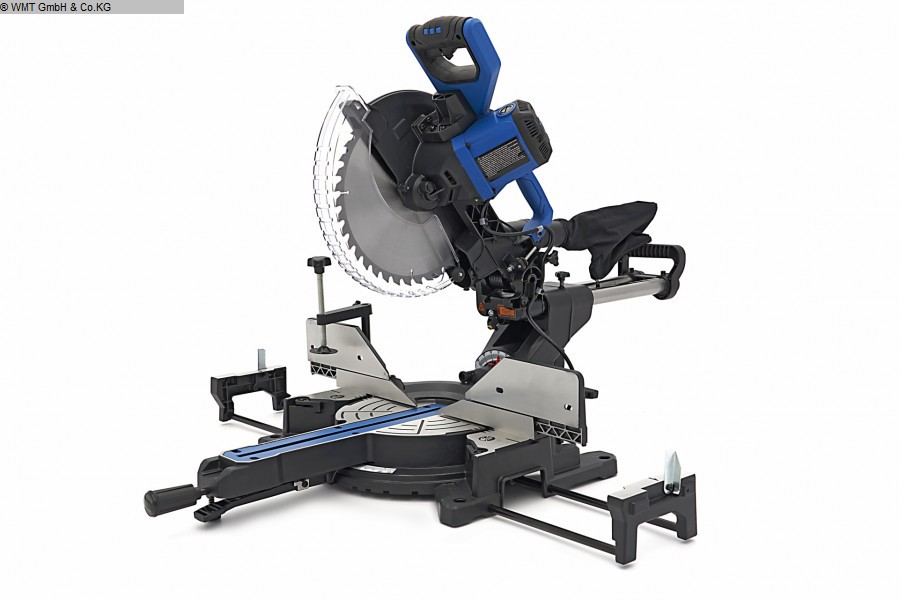

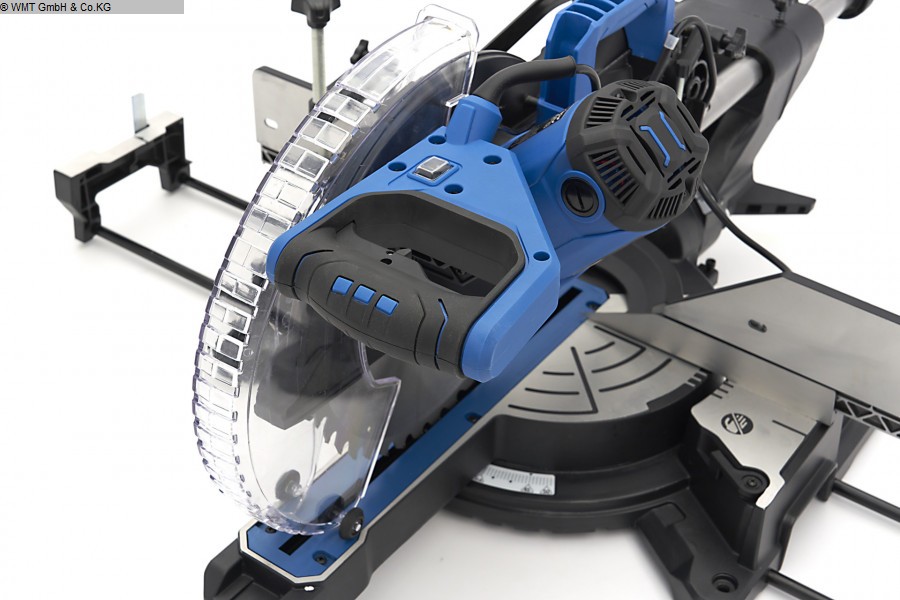

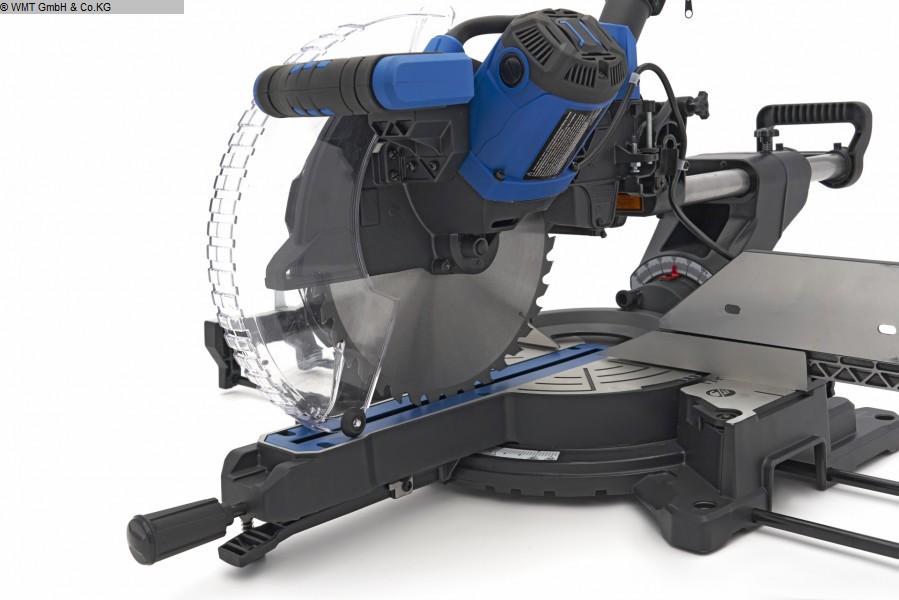

Mitre saw - HBM - 305 x 108

  • Stock number 1108-85121
  • Category Mitre saw
  • Make HBM
  • Type 305 x 108
  • Build year
  • Control conventional
  • Location 46342 Velen
  • Origin
  • Delivery time sofort
  • Delivery ab Lager
  • Price On request

Description

Cross-cut saw The machine is equipped with many adjustment options and tools to support and secure the workpiece to be cut. A line laser indicates where the cut should be made. The protective cover folds away automatically. Delivery including: saw blade (installed) 6mm allen key anthers 2x side supports

Technical details

  • saw-blade dia. 305 mm
  • Cutting height 105 x 340 mm
  • Cutting height at 45° 60 x 340 mm
  • saw blade turning speeds 5000 U/min
  • Motor output 2,0 kW
  • machine weight ab. 25 kg
  • Dimensions (L/W/H) 700 x 570 x 980 mm

Additional

  • No additional information specified

Accessories

  • no accessories specified
