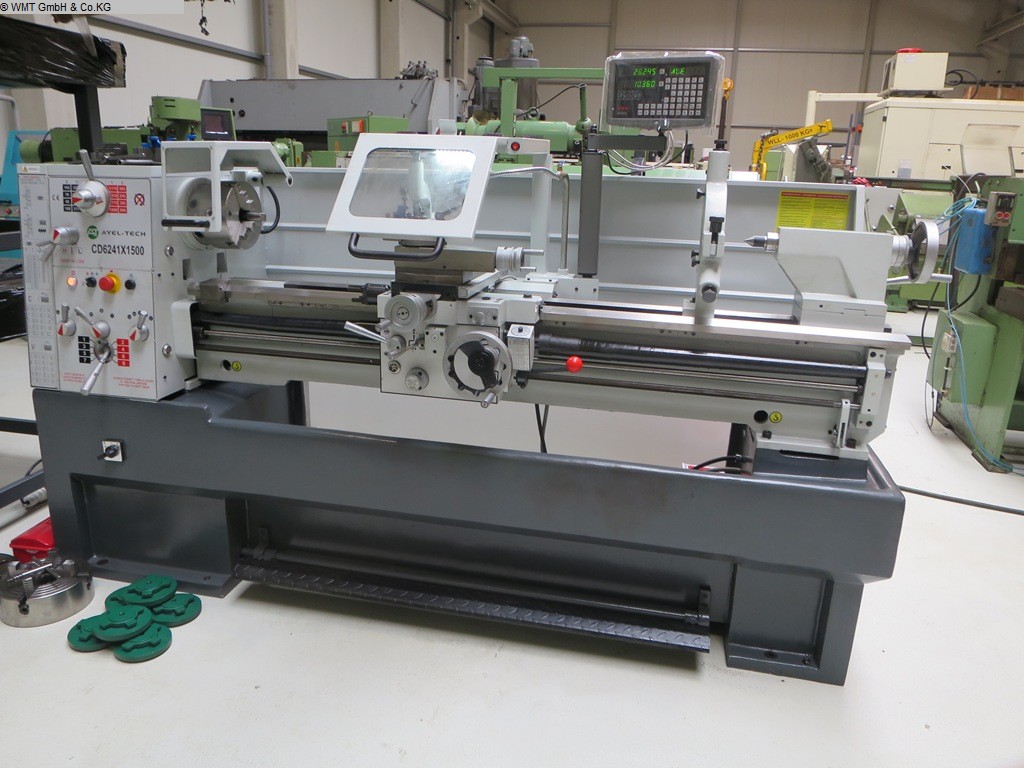

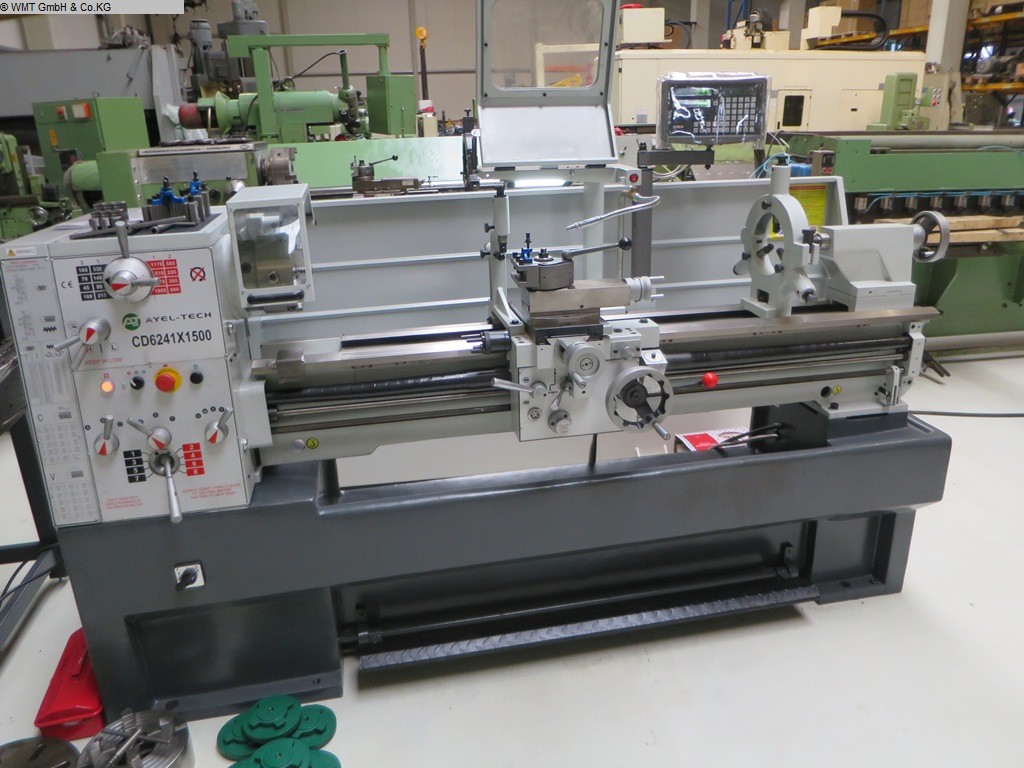

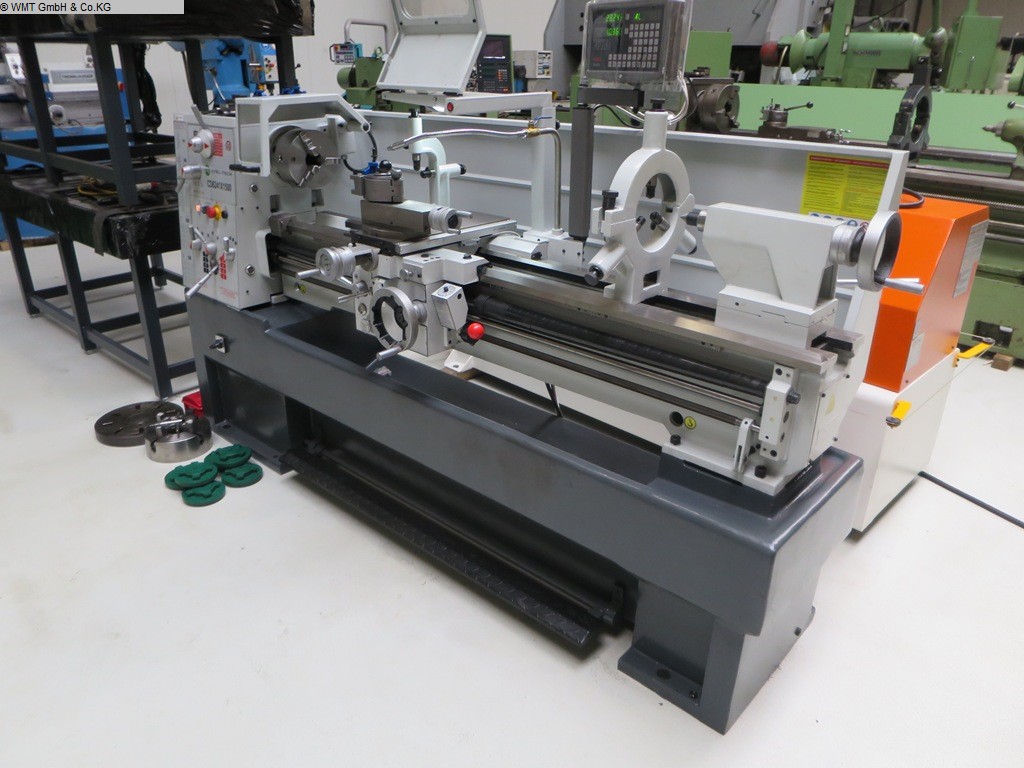

Center Lathe - AYEL-TECH - CD 6241 x 1500
- Stock number 1108-78074
- Category Center Lathe
- Make AYEL-TECH
- Type CD 6241 x 1500
- Build year
- Control conventional
- Location 46342 Velen
- Origin Germany
- Delivery time kurzfristig, zeitw. auf Lager
- Delivery ab Werk
- Price On request
Description

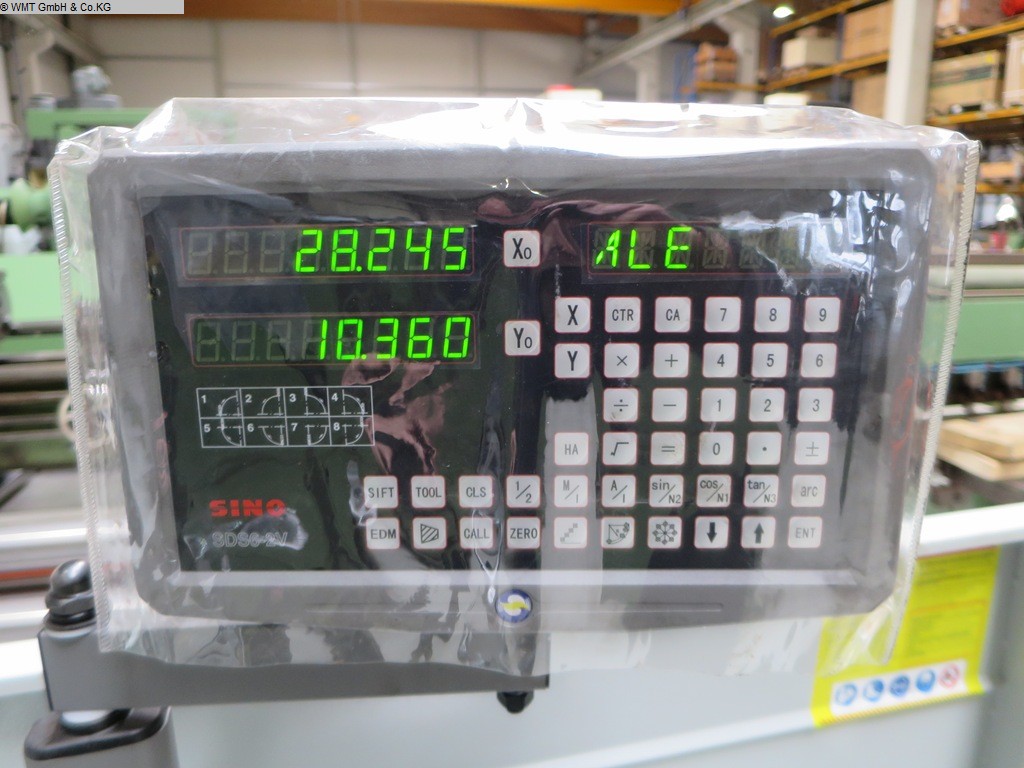

Professional industrial machine digital display 3-jaw chuck 200 mm. 4-jaw chuck 200 mm. Faceplate 280mm Bezel fixed Bezel rotating Multifix steel holder. Machine light Foot brake removable chip tray, chip protection wall Hardened and ground bed rails Complete coolant system Feed protection Machine feet Machine tool
Technical details
- turning diameter over bed 400 mm
- turning diameter over slide rest 260 mm
- turning length 1500 mm
- turning diameter in the gap 570 mm
- turning speeds 45 - 1800 U/min
- centre height 210 mm
- spindle bore 52 mm
- tailstock quill taper MT 4 MK
- connected load frequency 400 V
- total power requirement 3,5 kW
- weight of the machine ca. 1,5 t
- dimensions of the machine ca. 2,6 x 1,1 x 1,7 m
Additional
- No additional information specified
Accessories
- no accessories specified
