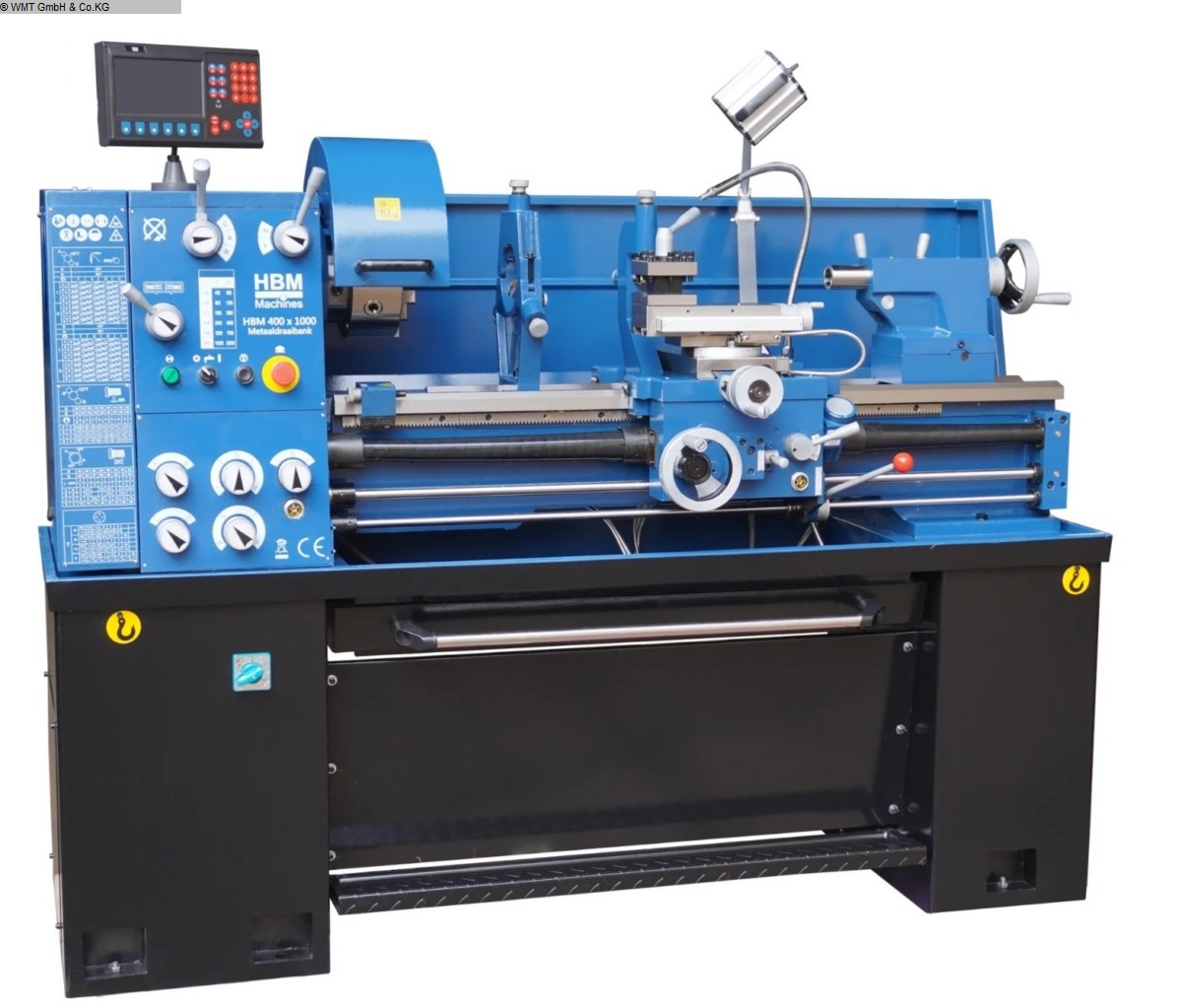

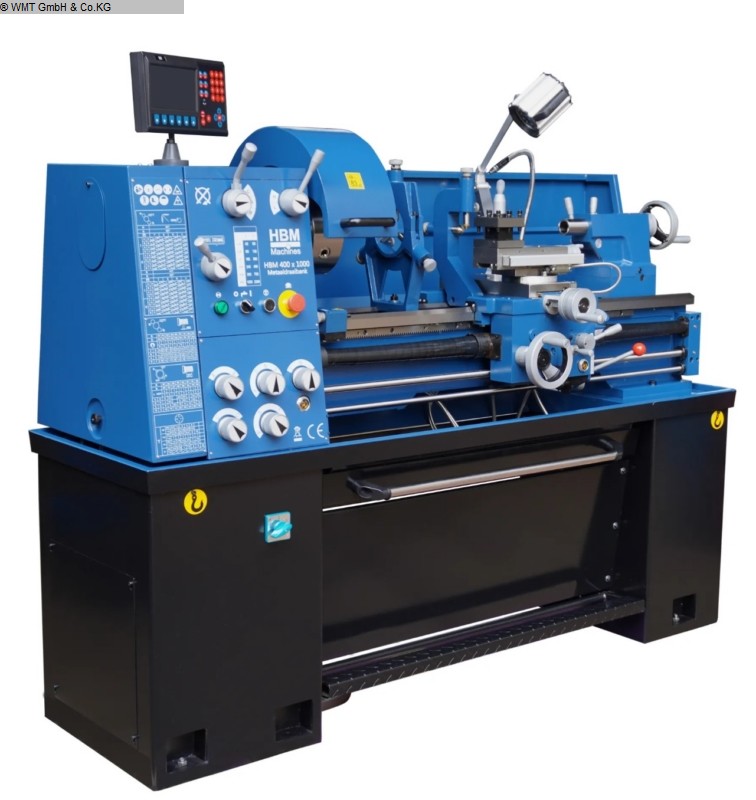

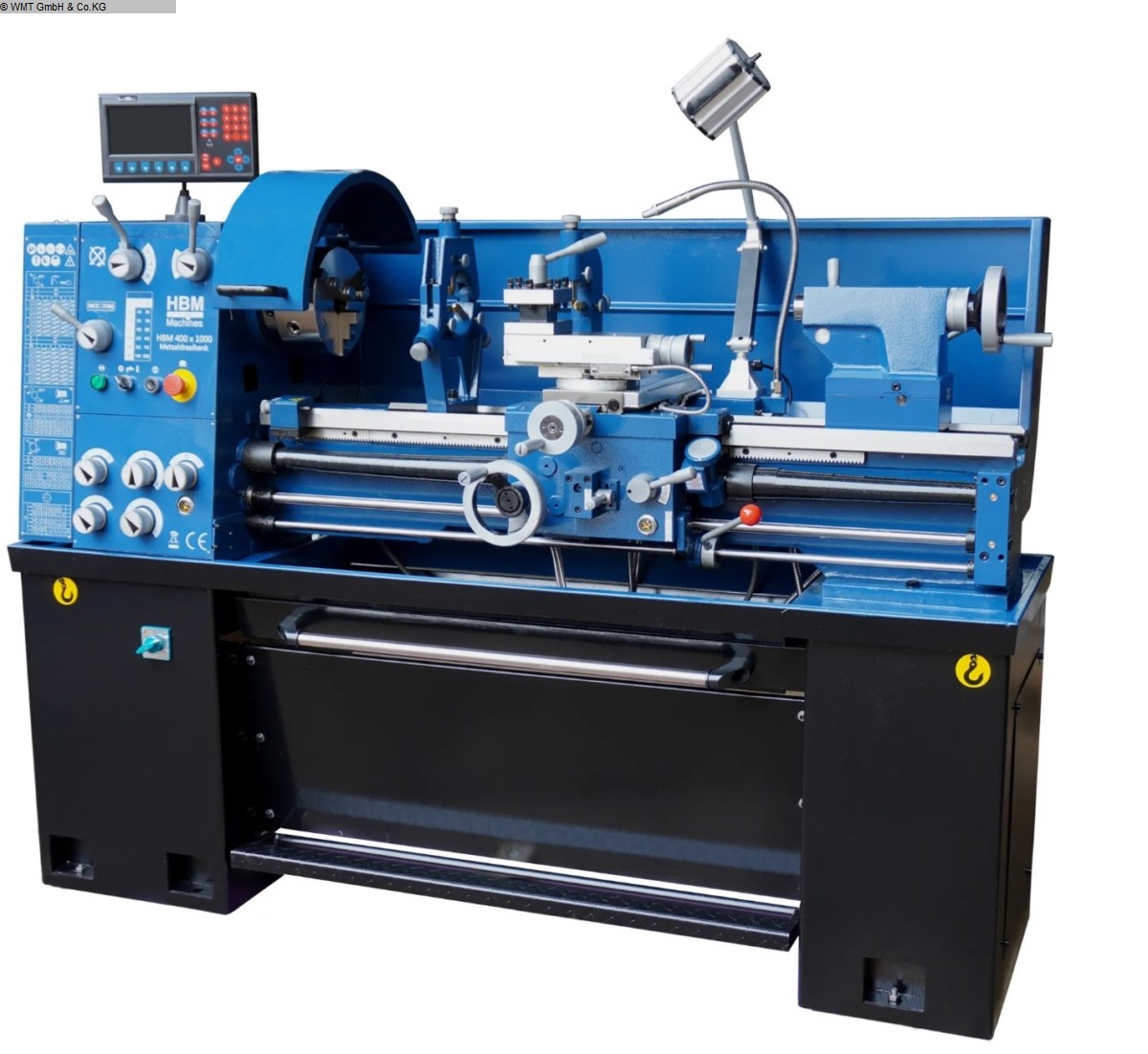

Center Lathe - HBM - 400 x 1000 DRO
- Stock number 1108-78066
- Category Center Lathe
- Make HBM
- Type 400 x 1000 DRO
- Build year
- Control conventional
- Location 46342 Velen
- Origin Germany
- Delivery time kurzfristig, zeitw. auf Lager
- Delivery ab Werk
- Price On request
Description

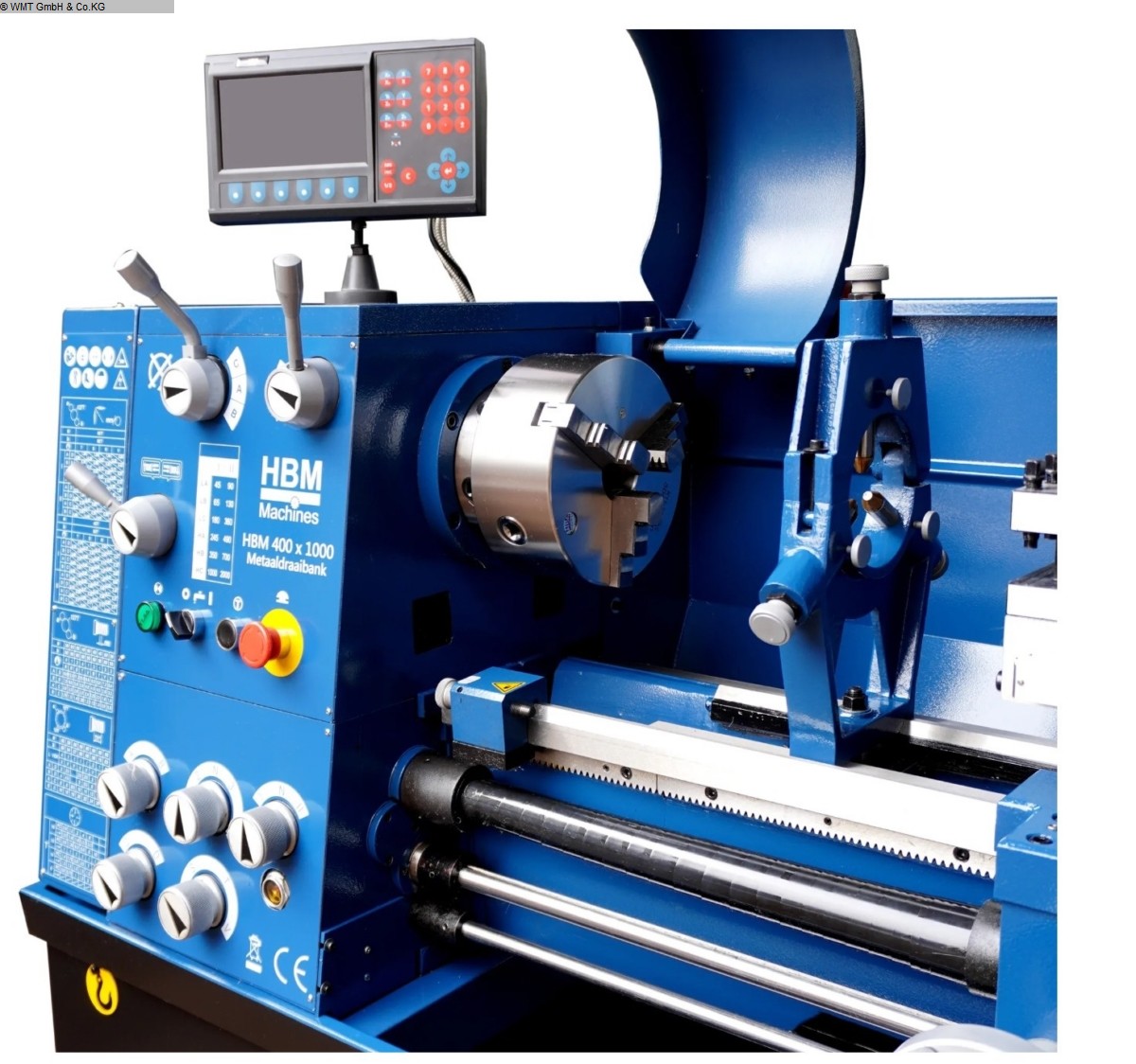

3-axis digital display 3-jaw chuck 200 mm. 4-jaw chuck 200 mm. Faceplate 320mm bezel fixed running bezel 4-fold steel holder. Halogen machine light machine light foot brake removable chip tray, chip protection wall Hardened and ground bed tracks Complete coolant system lining protection machine tools
Technical details
- turning diameter over bed 400 mm
- turning diameter over slide rest 264 mm
- turning length 1000 mm
- turning diameter in the gap 550 mm
- turning speeds 44 - 2000 U/min
- centre height 200 mm
- spindle bore 52 mm
- tailstock quill taper MT 4 MK
- connected load frequency 400 V
- total power requirement 1,5 / 2,4 kW
- weight of the machine ca. 0,9 t
- dimensions of the machine ca. 1,9 x 0,8 x 1,56 m
Additional
- No additional information specified
Accessories
- no accessories specified
