Bench Lathe - HBM - 250 x 550 Profi Vario
- Stock number 1108-78002
- Category Bench Lathe
- Make HBM
- Type 250 x 550 Profi Vario
- Build year -neu-
- Control conventional
- Location Velen-Ramsdorf (46342)
- Origin Germany
- Delivery time sofort
- Delivery ab Lager
- Price On request
Description

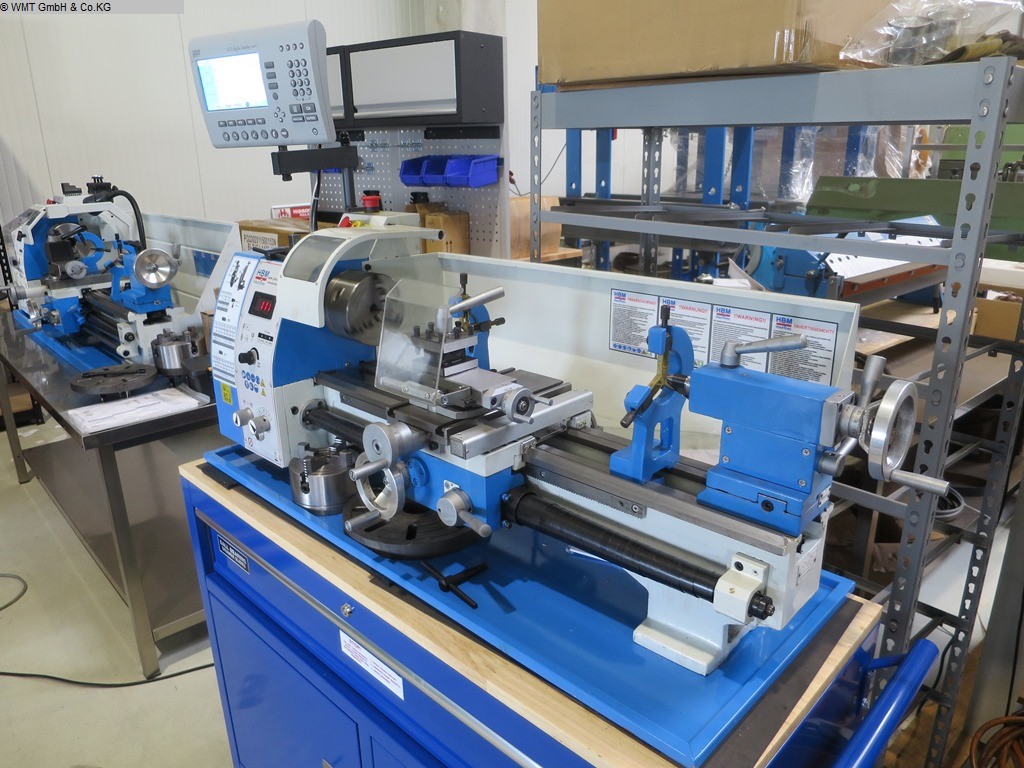

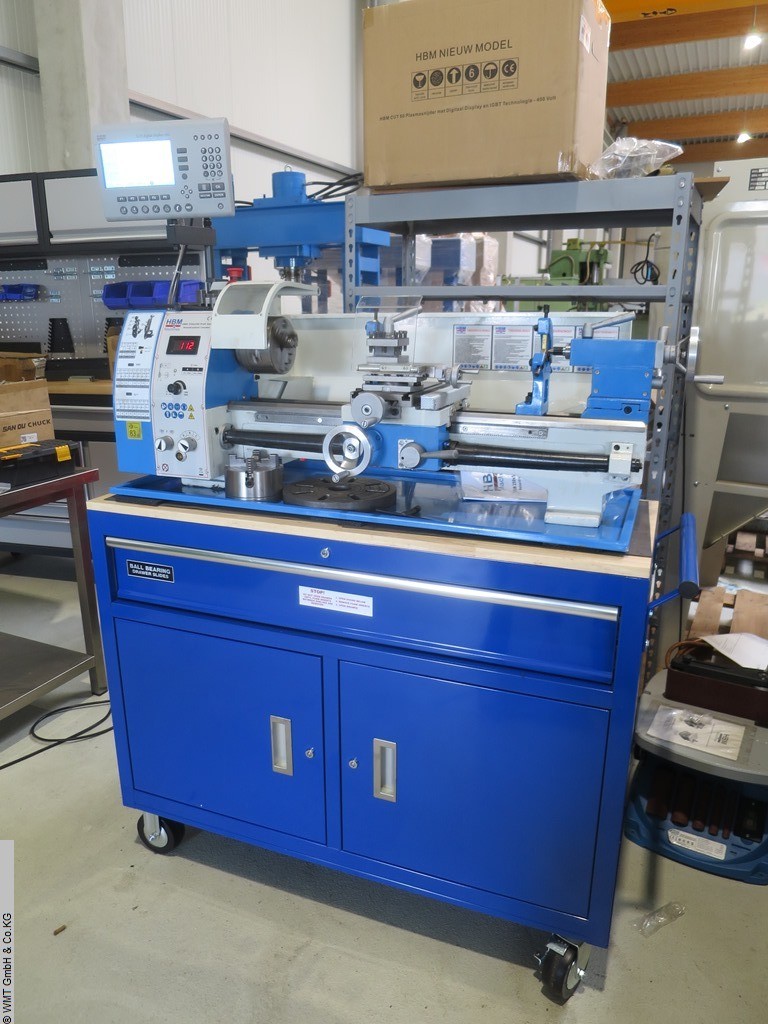

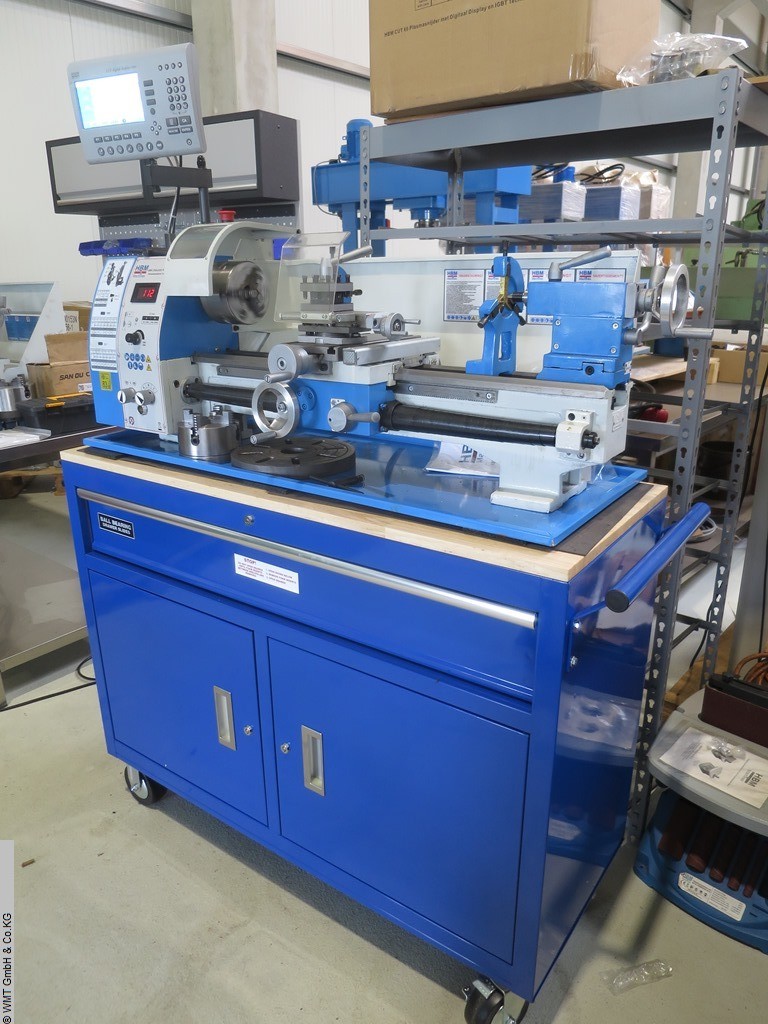

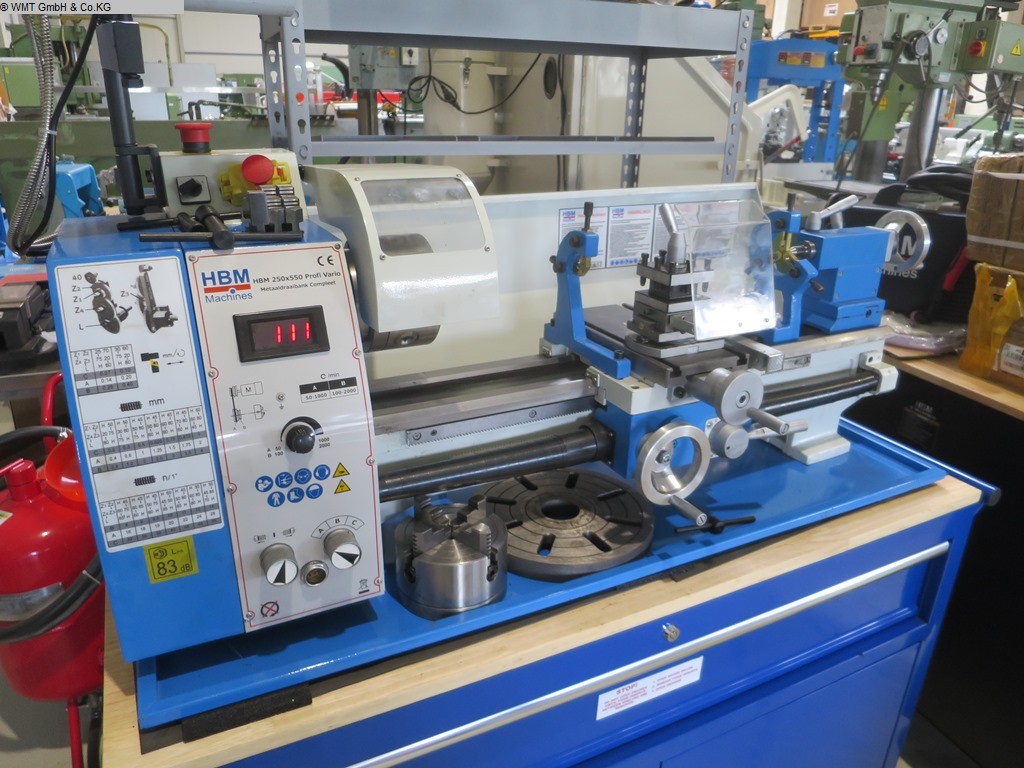

Benchtop lathe with base cabinet 3-axis LCD digital display system fully assembled. Longitudinal feed. 3-jaw chuck 125 mm. 4-jaw chuck 125 mm. Clamping plate. 4-way steel holder. Clock for thread cutting. Drip tray Hardened bed tracks. Emergency stop switch. Forage protection Set of wheels. Appropriate tools.
Technical details
- turning diameter over bed 250 mm
- turning diameter over slide rest 140 mm
- turning length 550 mm
- turning speeds 50 - 2000 U/min
- centre height 125 mm
- spindle bore 26 mm
- tailstock quill taper MT 2 MK
- tailstock quill stroke 65 mm
- connected load frequency 230 V
- total power requirement 1,1 kW
- weight of the machine ca. 0,15 t
- dimensions of the machine ca. 1,3 x 0,6 x 1,3 m
Additional
- No additional information specified
Accessories
- no accessories specified
