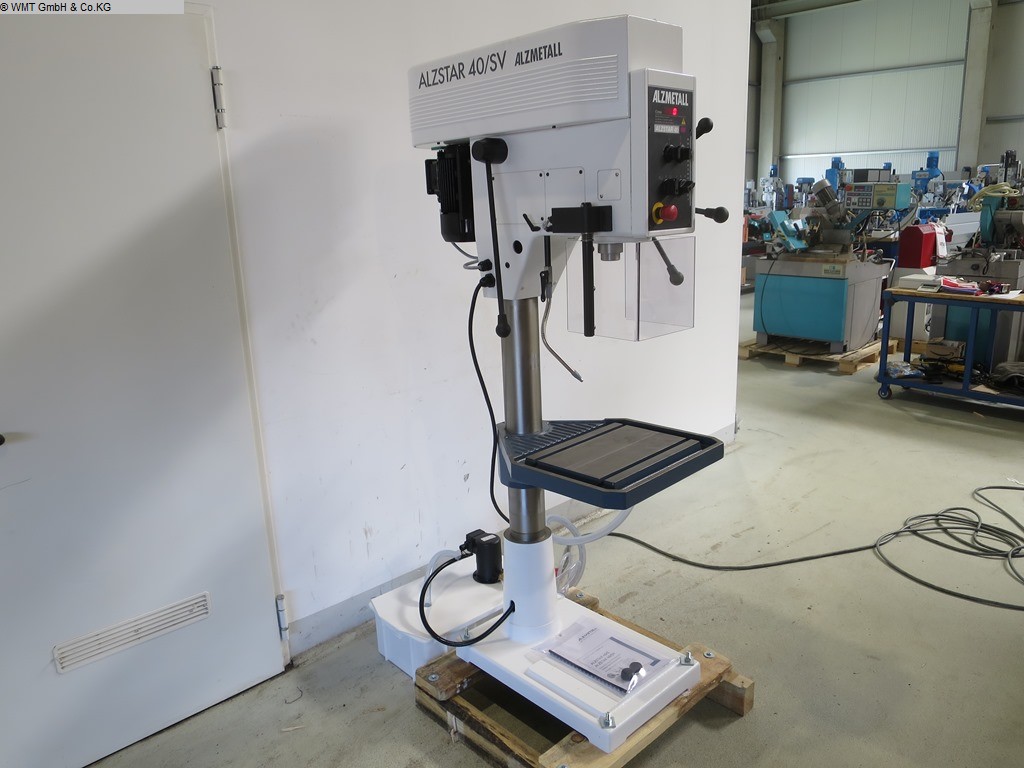

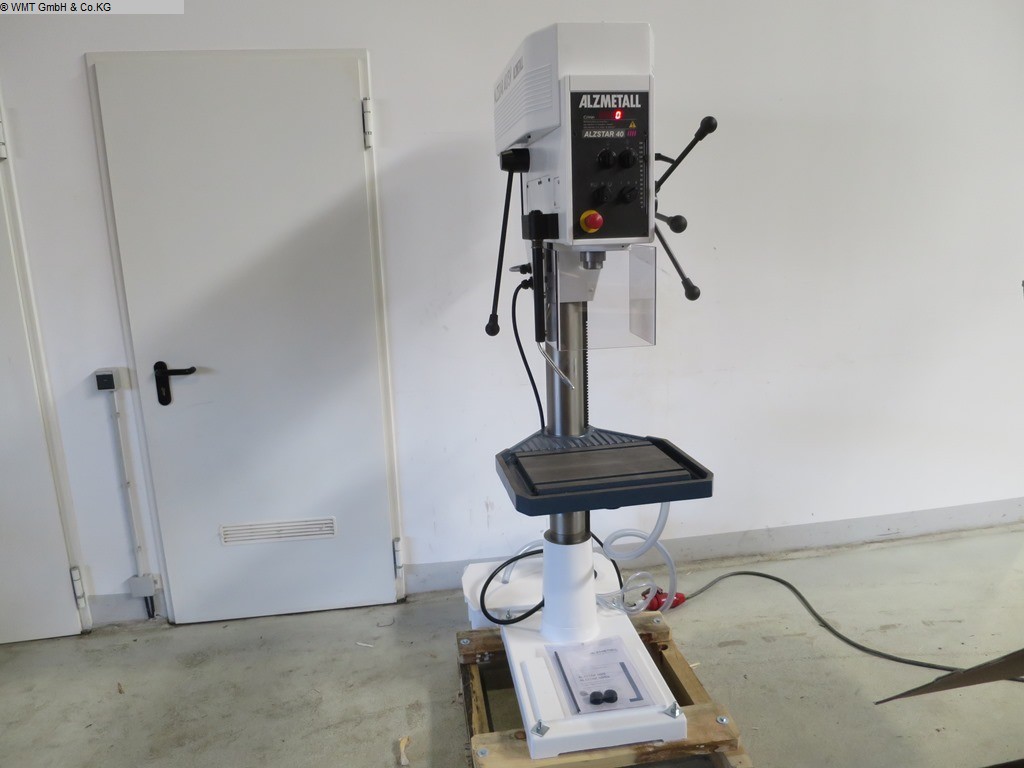

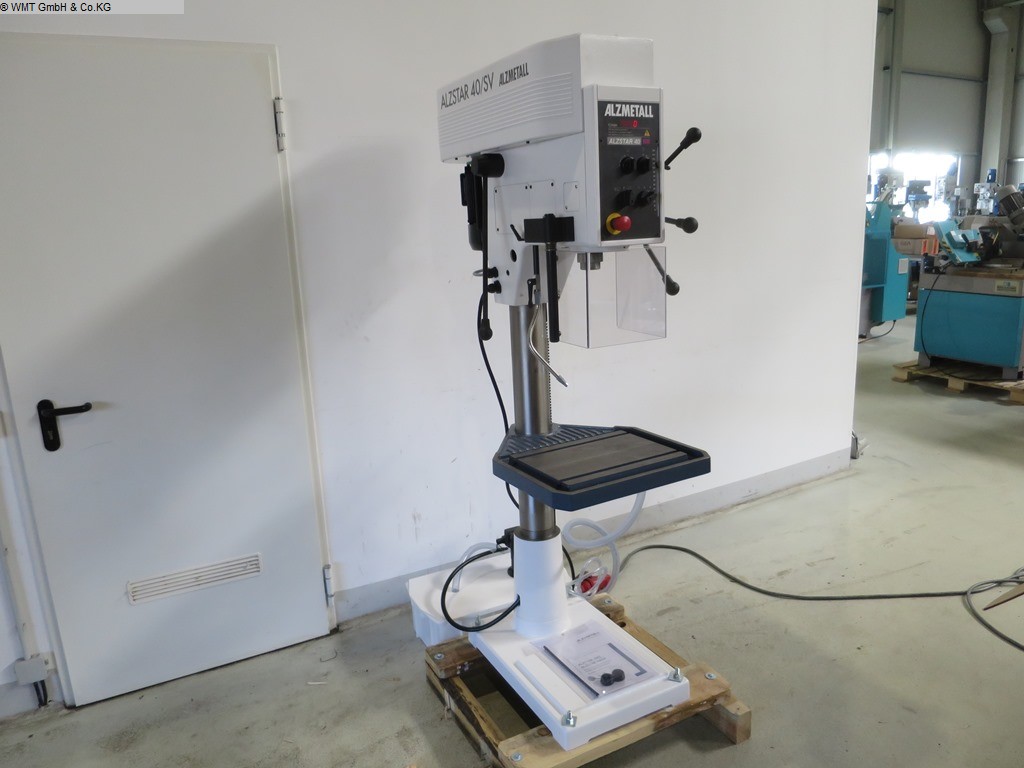

Pillar Drilling Machine - ALZMETALL - Alzstar 40/SV
- Stock number 1108-76270
- Category Pillar Drilling Machine
- Make ALZMETALL
- Type Alzstar 40/SV
- Build year Neu
- Control conventional
- Location Günzburg
- Origin Germany
- Delivery time sofort
- Delivery ab Lager
- Price On request
Description
Standard equipment: - Mushroom pushbutton (latching) for EMERGENCY STOP - Reversing switch for right-left rotation - Motor protection switch - Speed adjustment stepless - Speed display digital - Feed overload protection - Protection IP 54 - Connector (fully assembled, cable length 2 m) - Spindle protection with electrical protection Pos. 25 Coolant device B, consisting of: separate container (33l), Pump with motor protection switch, complete fitting
Technical details
- Drilling capacity in St 60 40 mm
- threading in St 60 M 24 mm
- threading in GG 20 M 30
- bore stroke 120 mm
- Short spindle MK 3
- throat 293 mm
- column diameter 115 mm
- Machine table - usable table surface 514 x 360 mm
- T-Slots Amount - Width - Distance 2 x 14 x 224 mm
- Distance spindle - machine table min./max. 117 / 701 mm
- feed 0,10 + 0,20 mm/U
- spindle turning speed range 160 - 2250 UpM
- total power requirement 1,45 / 1,9 kW
- height of the machine 1840 mm
- weight of the machine ca. 285 kg
Additional
- No additional information specified
Accessories
- no accessories specified
