Drilling and Milling M/C - HBM - 40 H Deluxe
- Stock number 1108-76022
- Category Drilling and Milling M/C
- Make HBM
- Type 40 H Deluxe
- Build year -Neu-
- Control conventional
- Location Velen-Ramsdorf (46342)
- Origin Netherlands
- Delivery time sofort
- Delivery ab Lager
- Price On request
Description

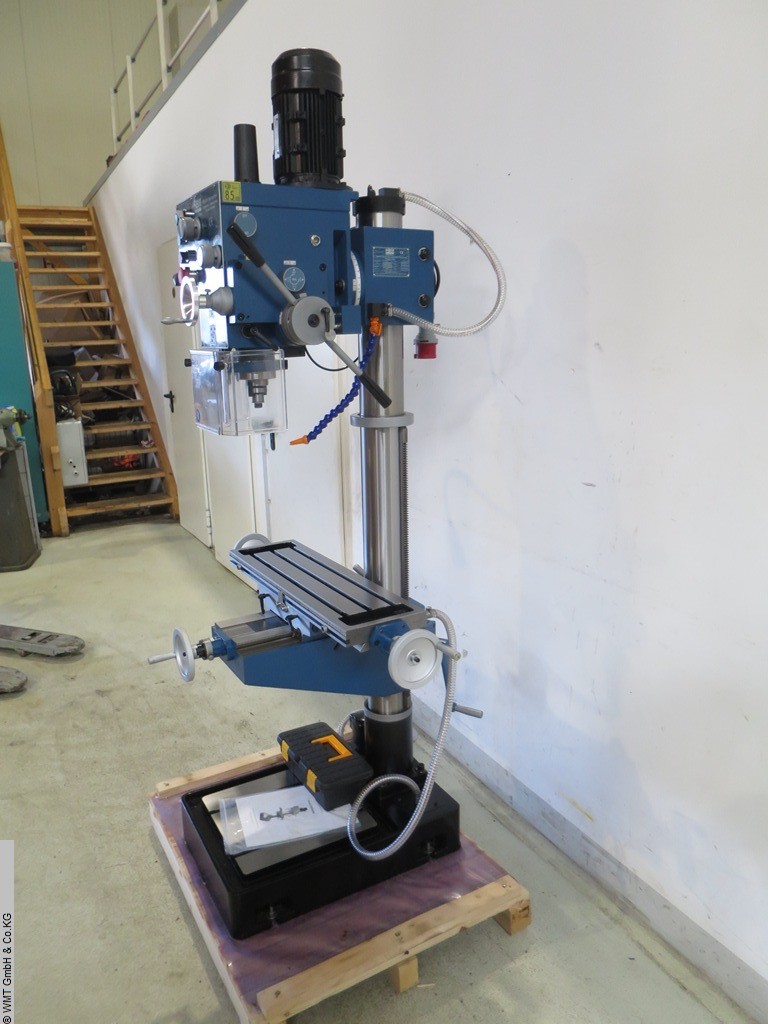

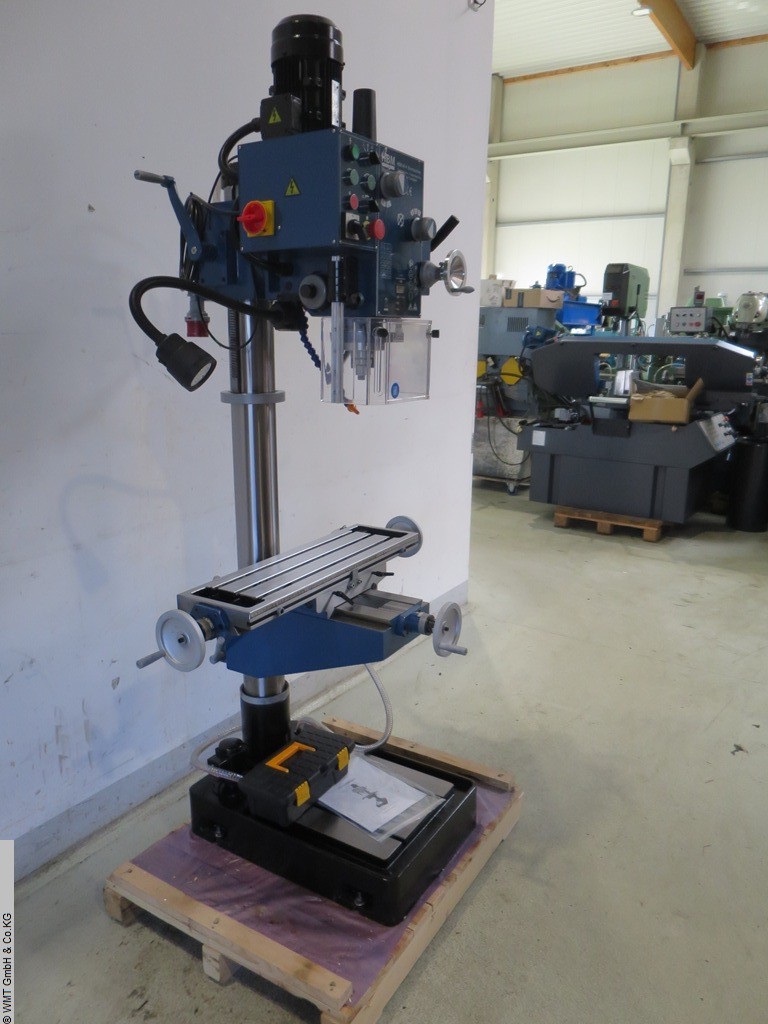

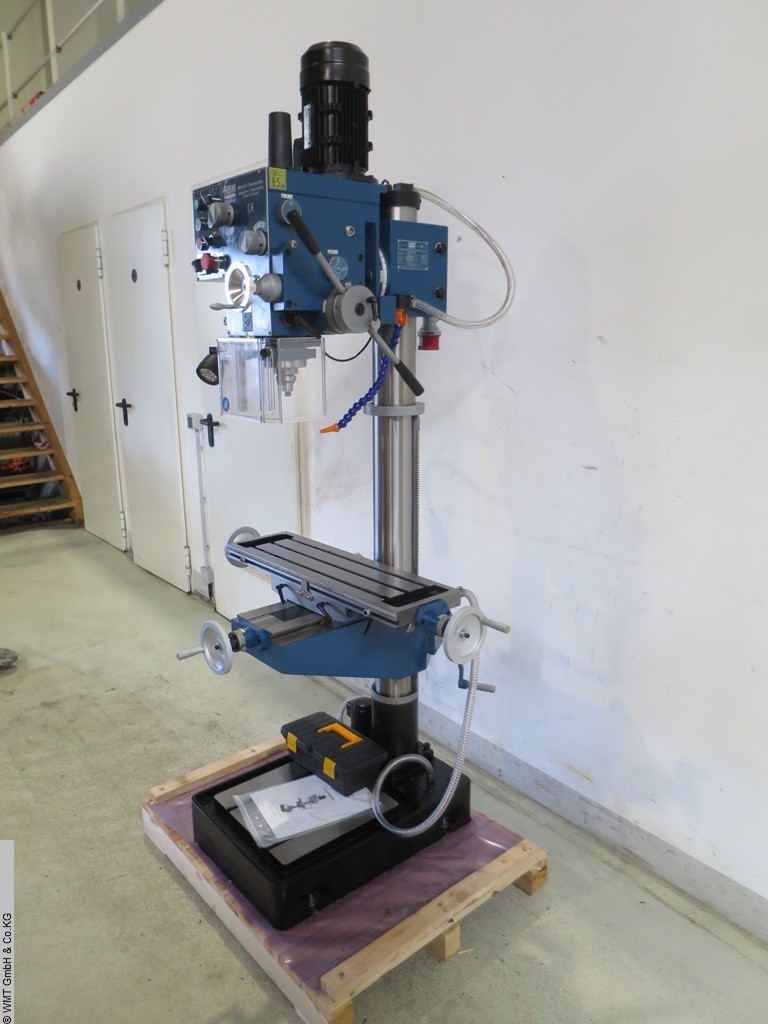

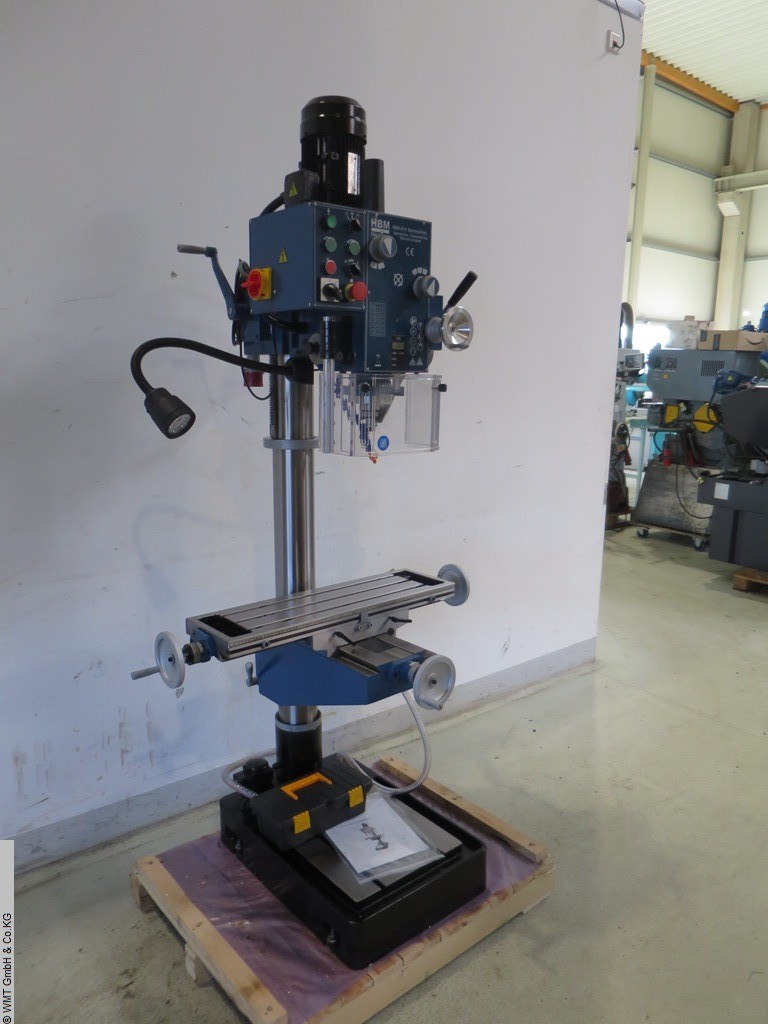

Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank
Technical details
- bore capacity in steel (diameter) 40 mm
- throat 275 mm
- bore stroke 120 mm
- spindle taper MK 4
- turning speed range 75 - 3200 U/min
- table surface area 730 x 210 mm
- connected load frequency 400 V
- boring feeds: 0,1 - 0,18 - 0,26 mm/U
- total power requirement 1,1/1,5 kW
- weight of the machine ca. 0,35 t
- dimensions of the machine ca. 0,8 x 0,75 x 1,85 m
Additional
- No additional information specified
Accessories
- no accessories specified
