Drilling and Milling M/C - HBM - BF 30 DRO big
- Stock number 1108-76017
- Category Drilling and Milling M/C
- Make HBM
- Type BF 30 DRO big
- Build year -Neu-
- Control conventional
- Location 46342 Velen
- Origin Niederlande
- Delivery time sofort
- Delivery ab Lager
- Price On request
Description

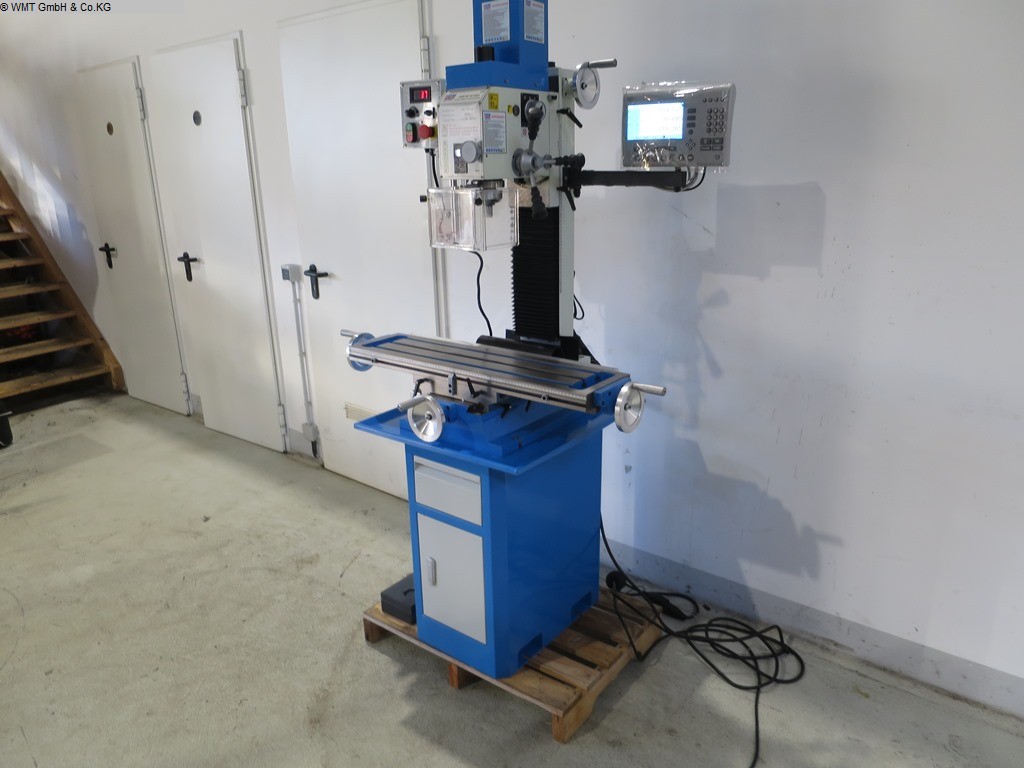

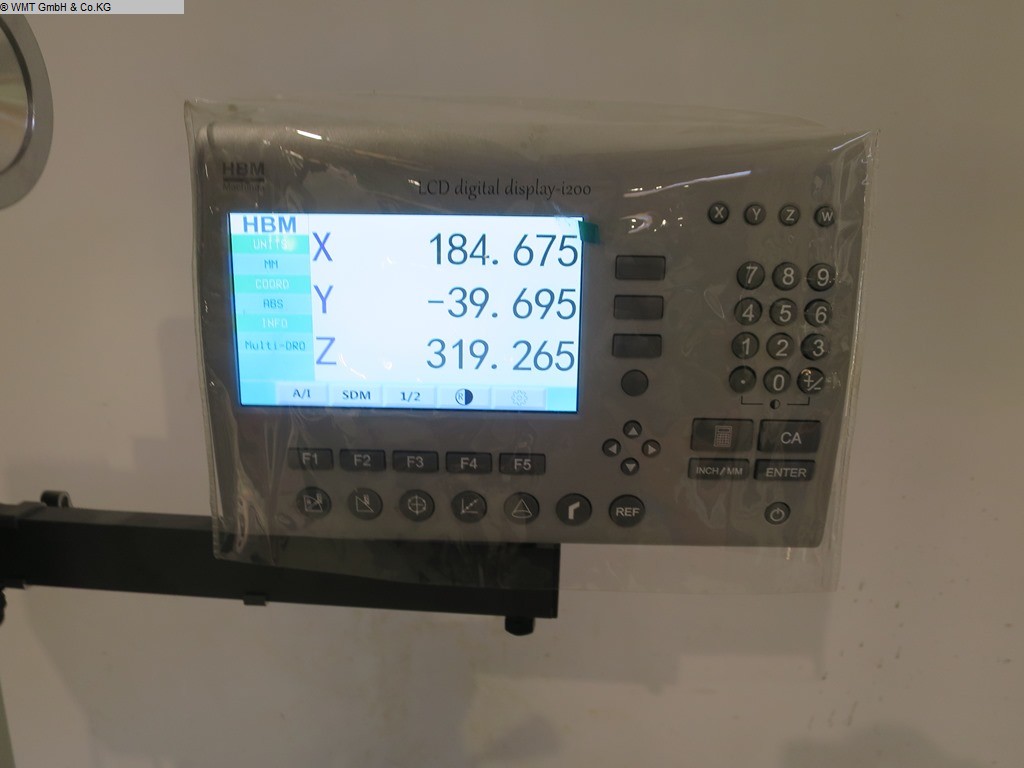

Drilling and milling machine with large table Digital display SINO 3-axis. Digital display quill stroke. 2 speed levels. Left/Right switch Pan head left/right 90° Recording MC 3 - B16. Drill chuck 3 - 16 mm. spindle protection. Machine stand. incl. tool box with various tools
Technical details
- bore capacity in steel (diameter) 30 mm
- throat 200 mm
- bore stroke 70 mm
- spindle taper MK3
- spindle turning speed range 50 - 3000 U/min

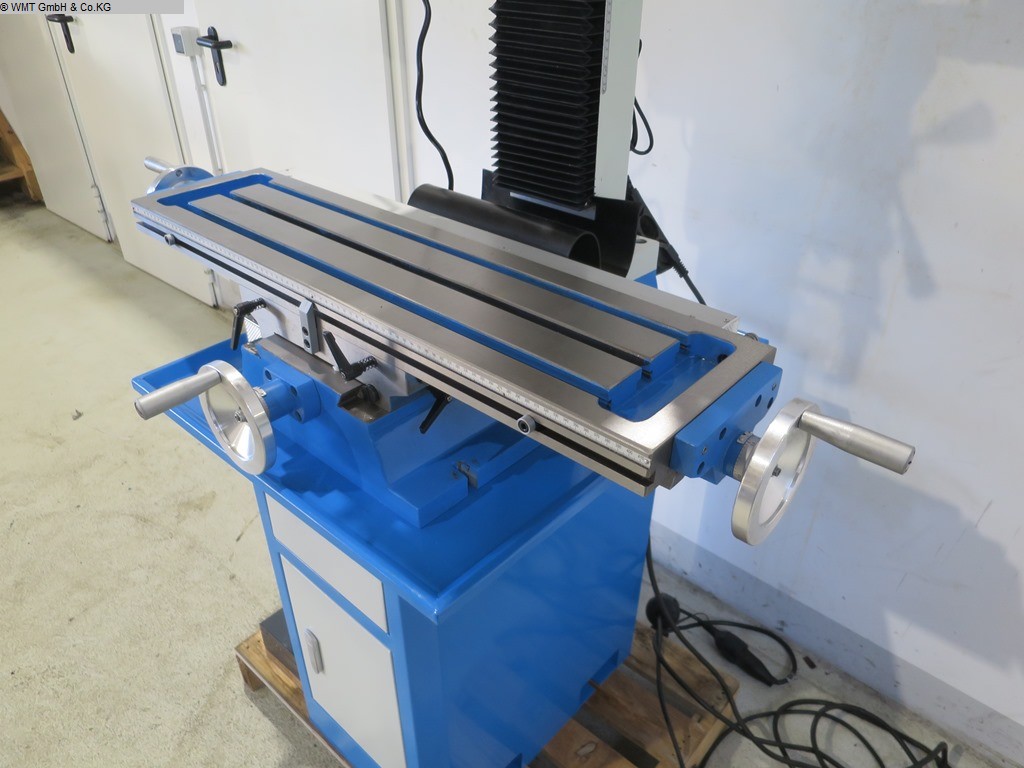

- table surface area 840 x 210 mm
- connected load frequency 400 V
- max. distance between table and spindle-nose max. 470 mm
- total power requirement 1,1 kW
- weight of the machine ca. 230 Kg
- dimensions of the machine ca. 0,75 x 1,05 x 1,3 m
