Drilling and Milling M/C - HBM - BF 30
- Stock number 1108-76015
- Category Drilling and Milling M/C
- Make HBM
- Type BF 30
- Build year -Neu-
- Control conventional
- Location 46342 Velen
- Origin Niederlande
- Delivery time sofort
- Delivery ab Lager
- Price On request
Description

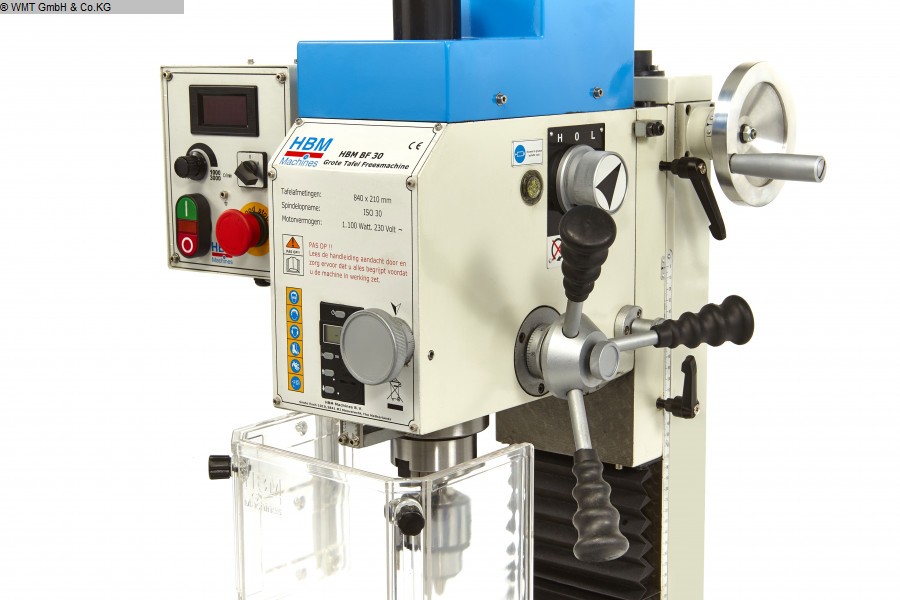

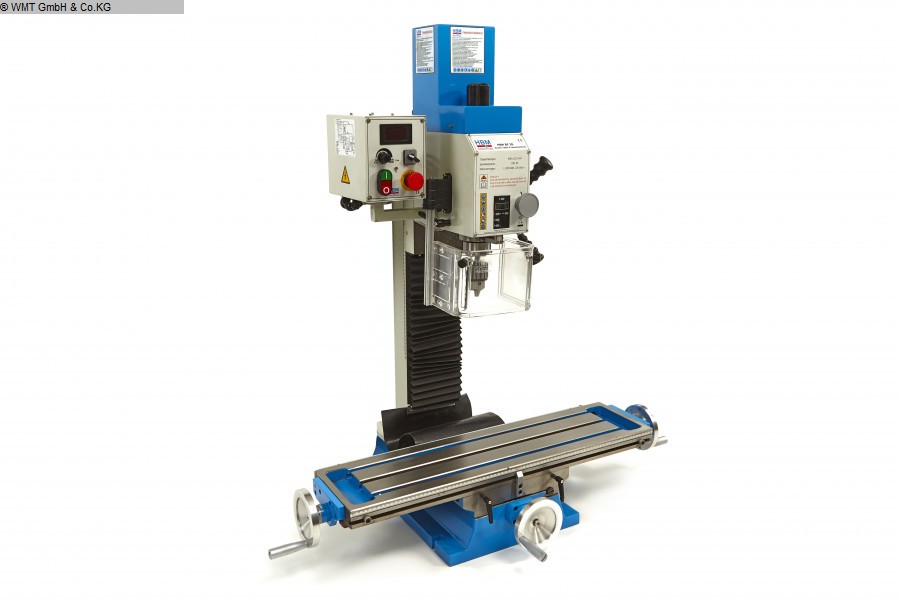

Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - swiveling spindle head - Feeds via hand crank - Tool case with content
Technical details
- bore capacity in steel (diameter) 32 mm
- throat 200 mm
- bore stroke 70 mm
- spindle taper MK3
- spindle turning speed range 50 - 3000 U/min
- table surface area 700 x 210 mm
- connected load frequency V
- max. distance between table and spindle-nose 470 mm
- total power requirement 1,5 kW
- weight of the machine ca. 230 Kg
- dimensions of the machine ca. 0,75 x 1,05 x 1,2 m
Additional
- No additional information specified
Accessories
- no accessories specified
