Drilling and Milling M/C - HBM - TYP 16
- Stock number 1108-76011
- Category Drilling and Milling M/C
- Make HBM
- Type TYP 16
- Build year -Neu-
- Control conventional
- Location 46342 Velen
- Origin Niederlande
- Delivery time sofort
- Delivery ab Lager
- Price On request
Description

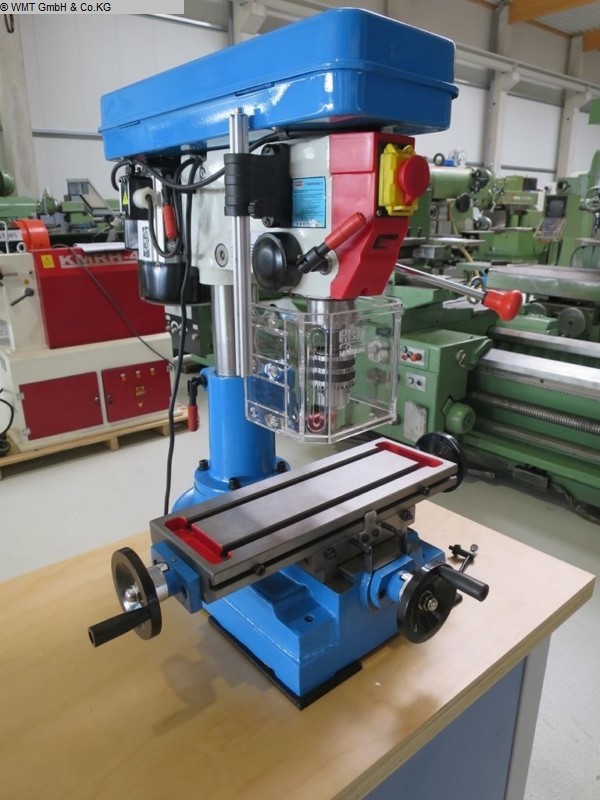

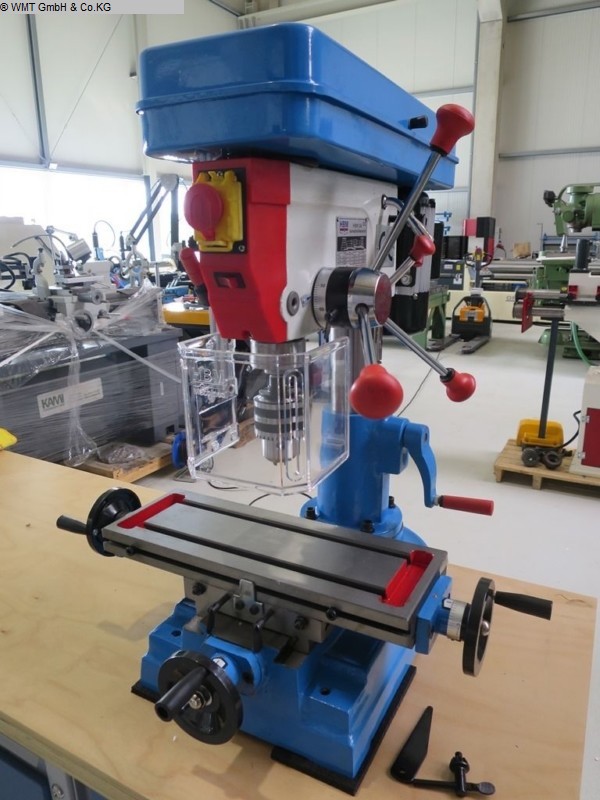

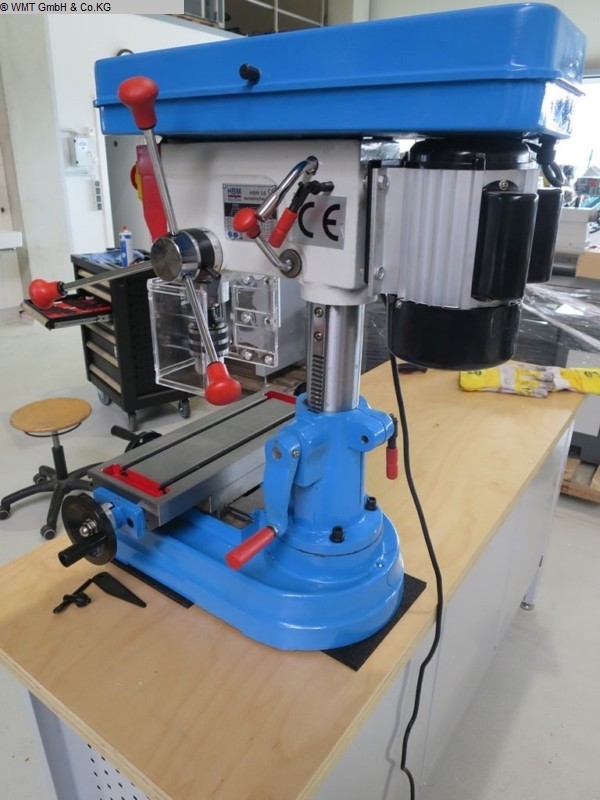

Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank
Technical details
- bore capacity in steel (diameter) 16 mm
- throat 180 mm
- bore stroke 85 mm
- spindle taper MK 2
- spindle diameter 47 mm
- spindle turning speed range 320 - 3300 U/min

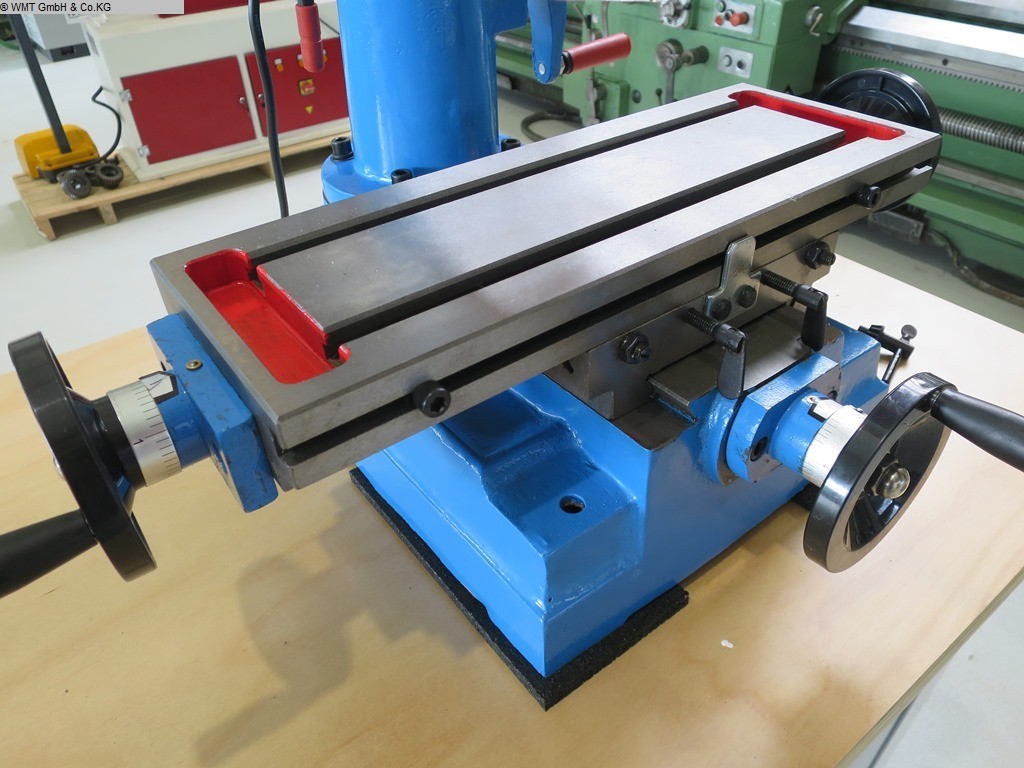

- table surface area 420 x 155 mm
- connected load frequency 230 V
- total power requirement 0,75 kW
- weight of the machine ca. 8o Kg
- dimensions 0,7 x 0,7 x 0,8 m
Additional
- No additional information specified
Accessories
- no accessories specified
