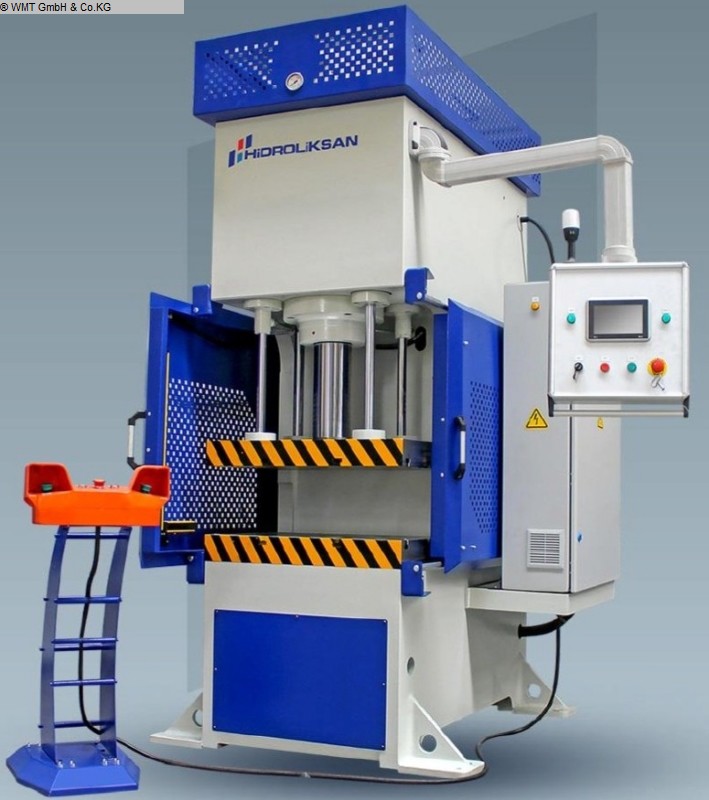

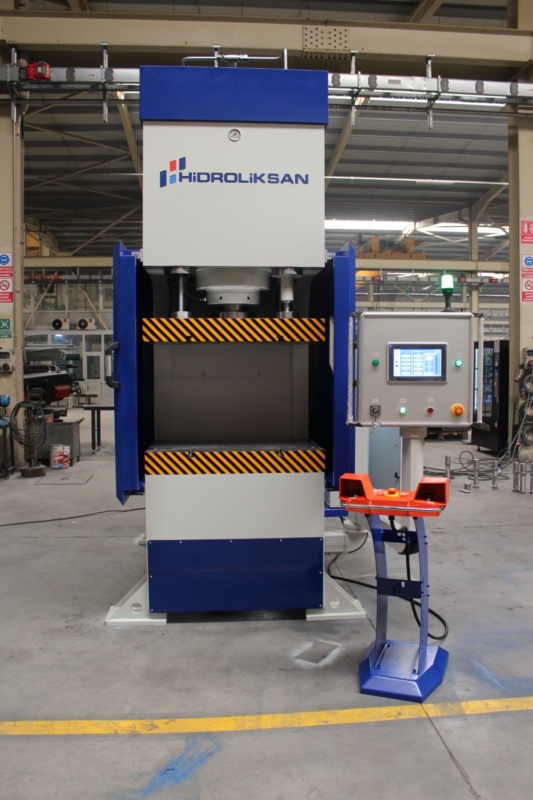

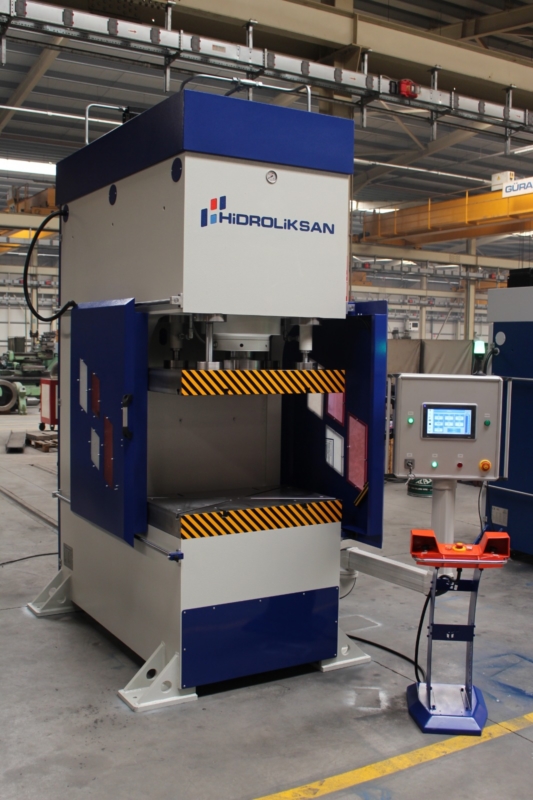

Single Column Press - Hydraulic - HIDROLIKSAN - CFSS 150t
- Stock number 1108-69802
- Category Single Column Press - Hydraulic
- Make HIDROLIKSAN
- Type CFSS 150t
- Build year 2026
- Control NC
- Location Velen-Ramsdorf (46342)
- Origin Germany
- Delivery time ca. 3 Monate
- Delivery EXW, free loaded to truck
- Price On request
Description
Single-column press with - Hardened and chrome-plated cylinder - Main cylinder diameter 270 mm - Auxiliary cylinder diameter 70 mm - Bosch Rextroth pump, valves, and filters - Hydraulic overload valve - Hydraulic proportional valve - Siemens touchscreen control panel with remote maintenance access Settings for stroke, pressure, speed, and dwell time - Category 4 sensors and photoelectric sensor - Two-hand control panel with reset and emergency stop buttons - CE marking
Technical details
- pressure 150 t
- throat 300 mm
- stroke 400 mm
- dayligth 600 mm
- table surface area 1000 x 600 mm
- Control Siemens S7
- hole in the table 0 mm
- table height over floor mm
- ram surface 1000 x 600 mm
- working feed 5 - 15 mm/sec
- speed down 130 mm/sek
- speed up 180 mm/sek
- power requirement 18 kW
- weight of the machine ca. 12,0 t
- dimensions 2,4 x 1,9 x 3,5 m
Additional
- No additional information specified
Accessories
- no accessories specified
Videos
No Videos
