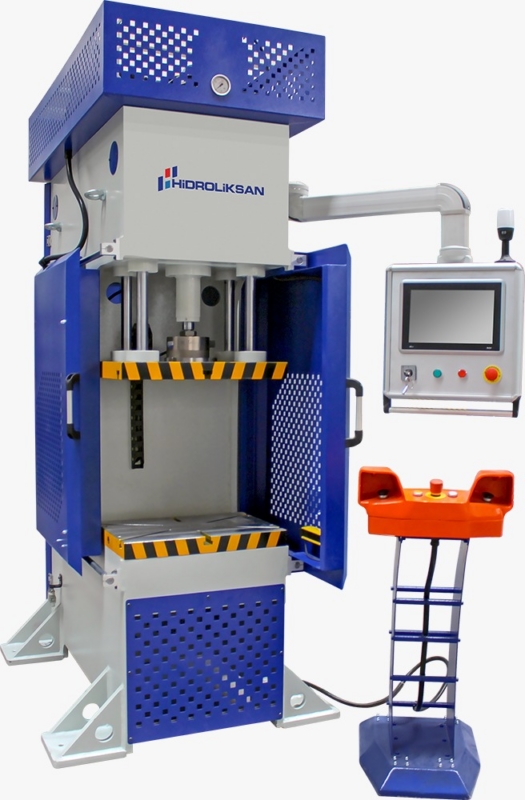

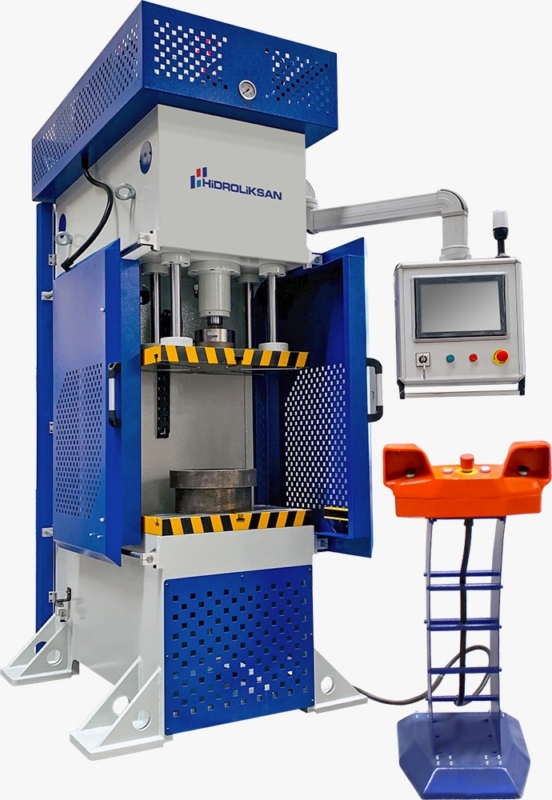

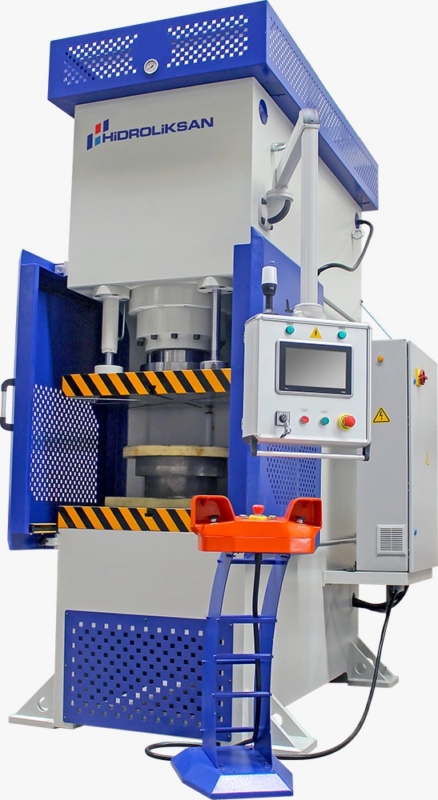

Single Column Press - Hydraulic - HIDROLIKSAN - CFSS 100t
- Stock number 1108-69801
- Category Single Column Press - Hydraulic
- Make HIDROLIKSAN
- Type CFSS 100t
- Build year 2026
- Control NC
- Location Velen-Ramsdorf (46342)
- Origin Germany
- Delivery time ca. 3 Monate
- Delivery EXW, free loaded to truck
- Price On request
Description
Single-column press with - Hardened and chrome-plated cylinder - Main cylinder diameter 220 mm - Auxiliary cylinder diameter 50 mm - Bosch Rextroth pump, valves, and filters - Hydraulic overload valve - Hydraulic proportional valve - Siemens touchscreen control panel with remote maintenance access Settings for stroke, pressure, speed, and dwell time - Category 4 sensors and photoelectric sensor - Two-hand control panel with reset and emergency stop buttons - CE marking
Technical details
- pressure 100 t
- throat 250 mm
- stroke 400 mm
- dayligth 500 mm
- table surface area 800 x 500 mm
- Control Siemens S7
- hole in the table 0 mm
- table height over floor 500 mm
- ram surface 800 x 500 mm
- working feed 10 mm/sec
- speed down 110 mm/sek
- speed up 160 mm/sek
- power requirement 11,0 kW
- weight of the machine ca. 5,5 t
- dimensions 1,9 x 1,7 x 2,9 m
Additional
- No additional information specified
Accessories
- no accessories specified
