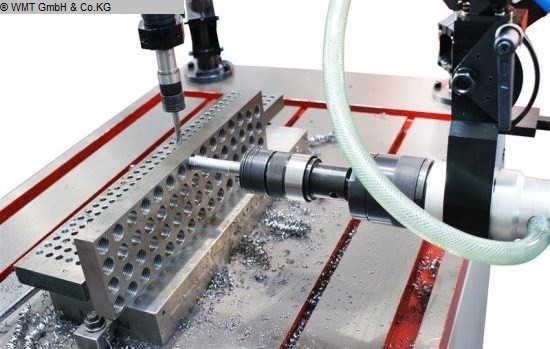

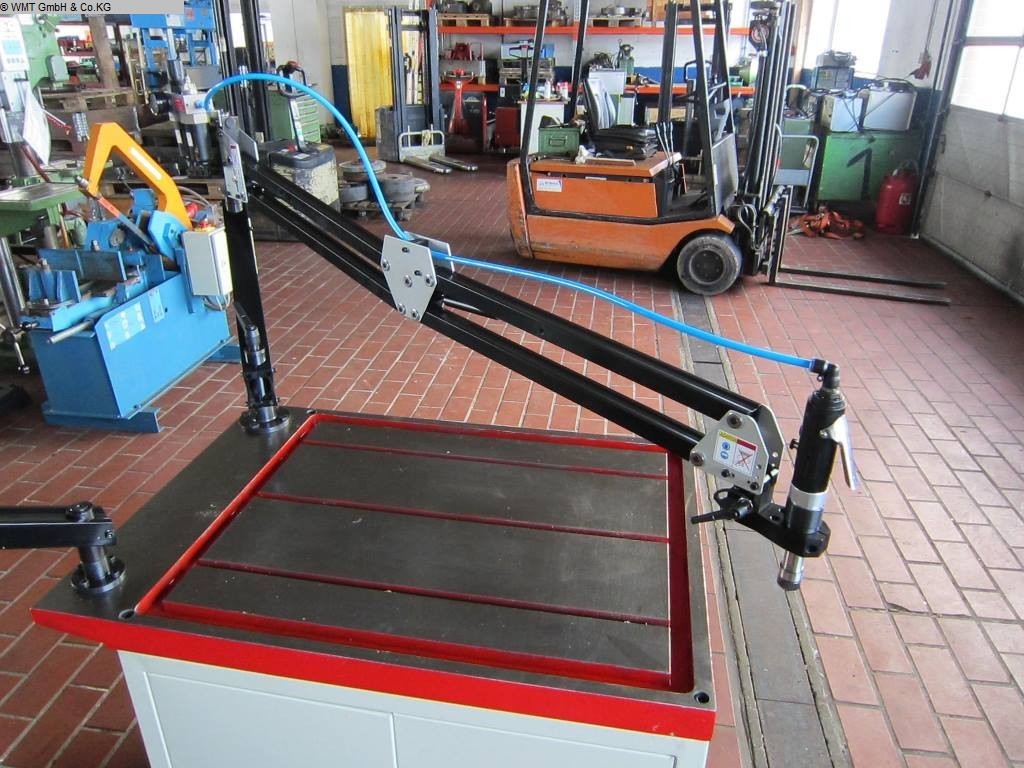

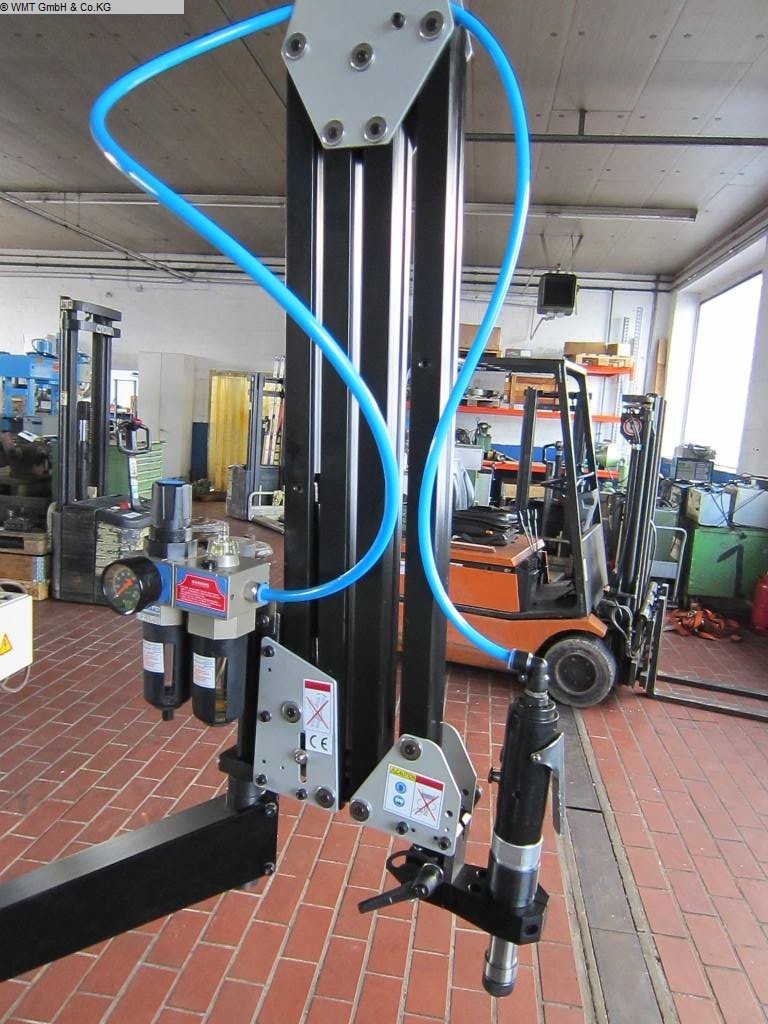

The pneumatically driven D-JSC tapping machine has, among other things, one Air motor with quick chuck and a stable and flexible Labor arm. The mounting arm can be attached directly to the work table using the mounting flange and is ready to work immediately. This means fast changeover times guaranteed. It is possible to simply tap the tap to the desired hole to be attached without having to position the component under the tap. Version with an adjustable angle, whereby the quick chuck can tilt so that horizontal tapping is also possible. Pneumatic tapping machines for M5 - M16 threads, angle adjustable. 6 pcs. Quick change chucks with slip clutch. Optional: - Clamping table with T-slots: 750x600x650mm or 990x700x800mm. - magnetic base.

• thread dia. M5 - M16 mm
• air pressure 6 - 8 bar
• working area 150 - 1900 mm

• No additional information specified

• no accessories specified
