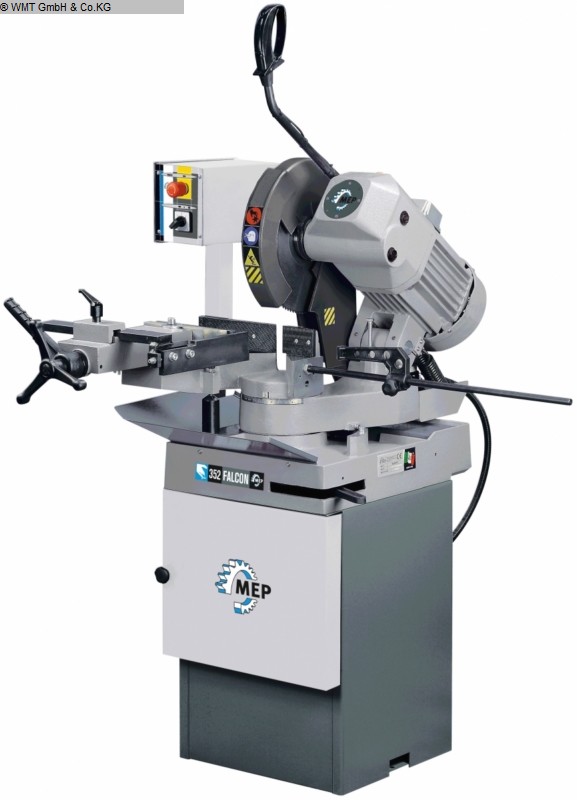

Manual miter saw for miter cuts from 45° left to 45° right. Steel worm wheel with double ball bearings Saw blade shaft mounted on eccentric made of spheroidal cast iron Bronze wheel with wedge and conical coupling to ensure maximum power transmission to the steel worm wheel Vice with adjustable guide bars Adjustable anti-cutting burr device (enables burr-free cutting) Length stop Double return springs Safety main switch Emergency stop button Speed switch Electric coolant pump for lubrication and cooling of the saw blade (attachment a micro spray device possible) Motor 1.5/1.8 kW - 400 volts Optional base frame 361 euros

• saw blade diameter 350 mm
• capacity 90 degrees: round 115 mm
• capacity 90 degrees: square 100 mm
• capacity 90 degrees: flat 130 x 80 mm
• capacity 45 degrees: round 100 mm
• capacity 45 degrees: square 85 mm
• capacity 60 degrees: flat 90 x 80 mm
• clamping range 130 mm
• turning speeds 30 / 60 U/min
• dimensions of saw-blade 350 x 32 x 2,5 mm
• total power requirement 1,1 / 2,2 kW
• weight of the machine ca. 0,22 t
• dimensions of the machine ca. 1200 x 860 x 900 m

• No additional information specified

• no accessories specified
