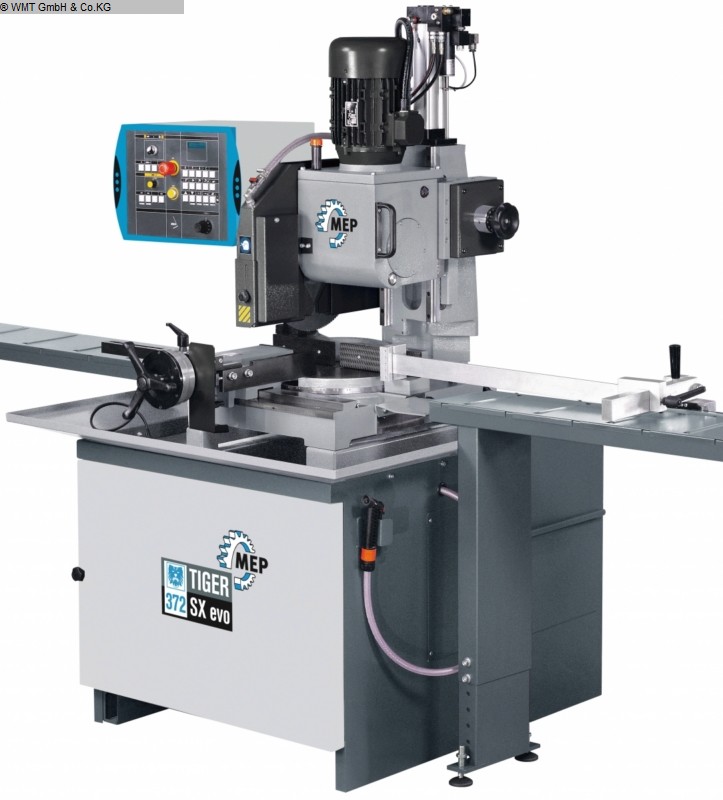

Electro-pneumatic - semi-automatic vertical circular saw with micro Processor control for miter cuts from 60° left to 45° right. Basic equipment: •Saw head slides on recirculating ball linear double guides •Three-stage gearbox •continuously variable speeds 15-150 rpm •Vice opening 190 mm • Stroke of the saw head can be programmed directly from the control panel for adjustment to the cutting material •Pneumatic vertical vice •Saw blade HSS DMO 5 Æ 370x32x3 for solid and profile material •Vise with counter-clamping device for double workpiece clamping •Base with removable coolant tray •Chip clearing brush •Length stop for cuts of the same length •Material support arm, at the same time connection option for roller conveyor/ loading side

• saw blade diameter 370 mm
• capacity 90 degrees: round 120 mm
• capacity 90 degrees: square 110 mm
• Working height 925 mm
• saw blade turning speeds 15 - 150 U/min
• total power requirement 5,5 kW
• weight of the machine ca. 0,615 t
• dimensions of the machine ca. 1,4 x 1,4 x 2,0 m

• No additional information specified

• no accessories specified
