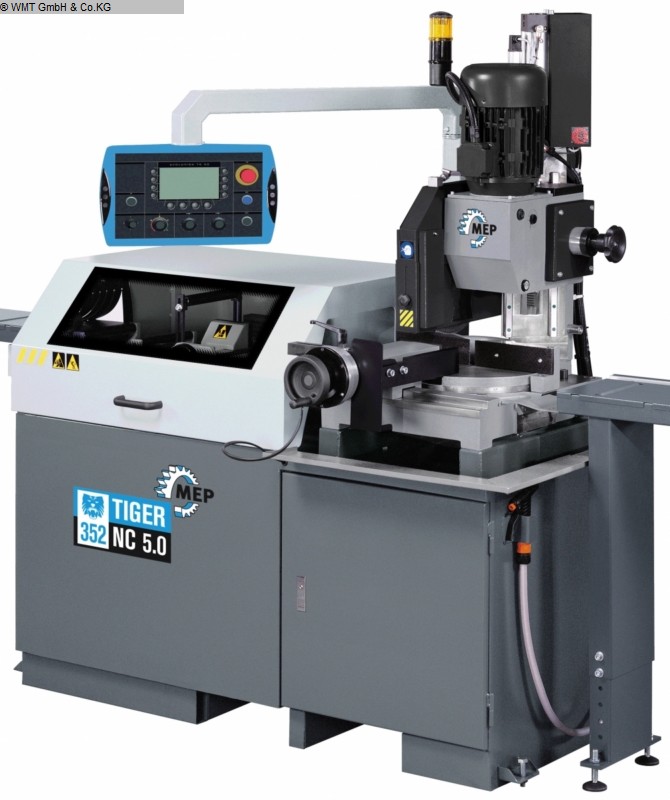

Electro-pneumatic, vertical, linear-guided automatic saw for use of HSS saw blades to make series cuts from 60° left to 45° right steel. The machine also works in semi-automatic cycle. CNC machine with multiprocessor and two with MEP control, latest generation controlled axes that make it possible to achieve 1000 with the same material thickness different cutting programs, each with a different cutting length and number of pieces program.

• saw blade diameter 350 mm
• capacity 90 degrees: round 115 mm
• capacity 90 degrees: square 95 mm
• Working height 925 mm
• saw blade turning speeds 15 - 90 U/min
• total power requirement 3,0 kW
• weight of the machine ca. 0,68 t
• dimensions of the machine ca. 0,8 x 1,0 x 1,85 m

• No additional information specified

• no accessories specified
