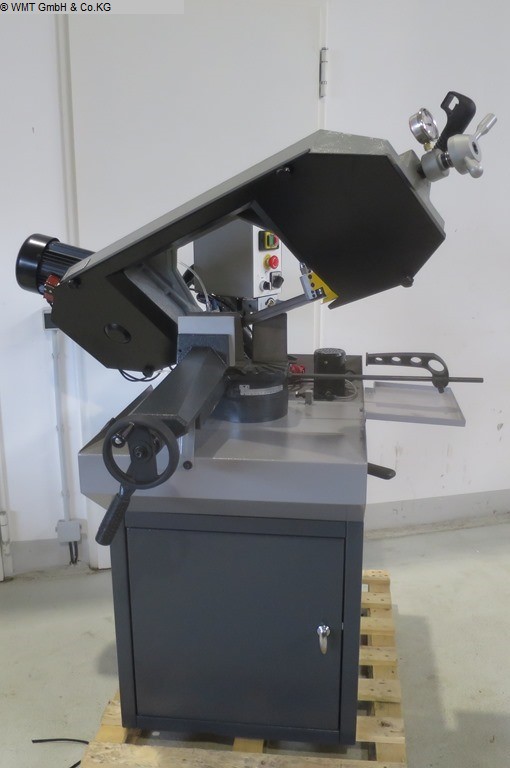

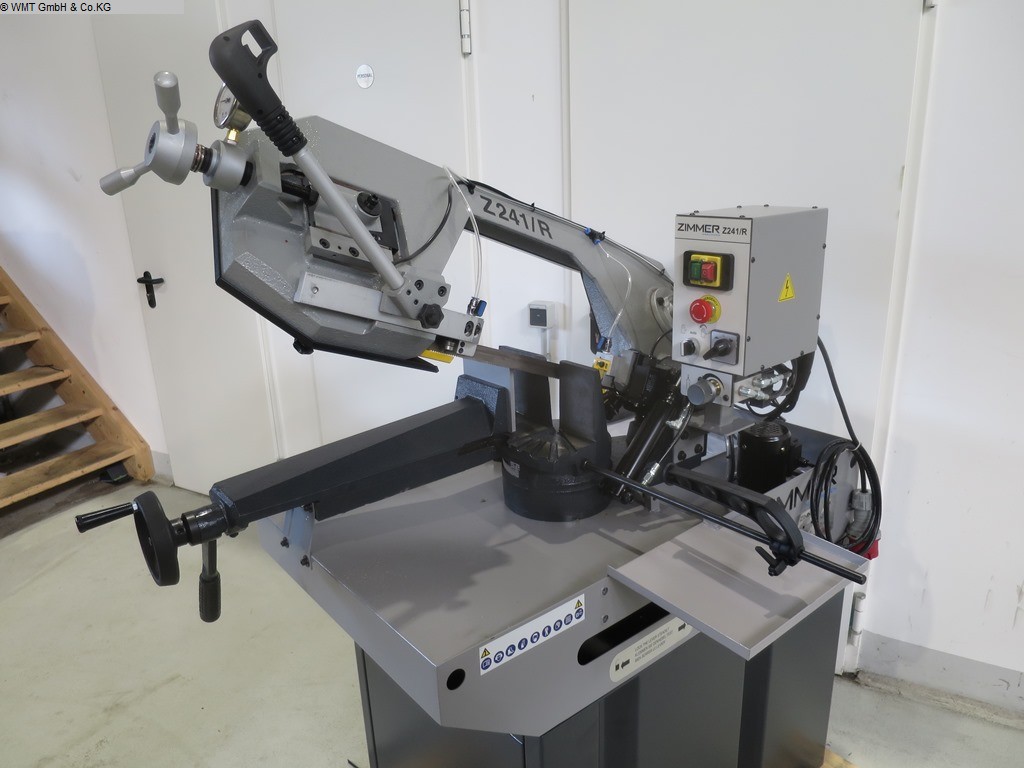

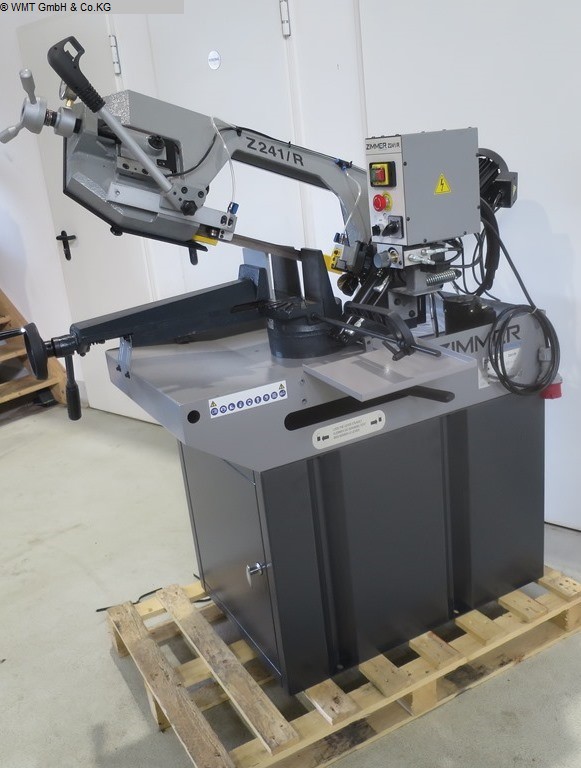

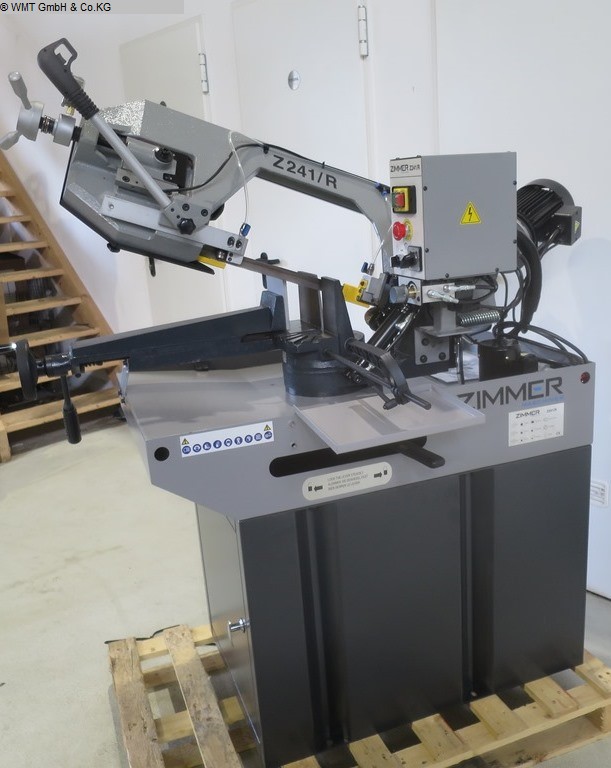

The Zimmer Z241/R is a self-lowering saw for miter cuts from 0 ° - 60 ° left. After the cut, the machine stays through one Safety limit switches stand. The reduction is infinitely variable Hydraulic system adjustable. The saw arm can be raised after the cut any position. The saw arm remains at the desired position stand. The Z241 / R has the following features: Hydraulic cylinder, emulsion pump, eccentric tensioner, base, saw band, 400V Connector -16A- The machine is completely assembled and delivered ready for use.

• cutting diameter 220 mm
• saw band length 2450 x 27 x 0,9 mm
• table height 915 mm
• band speed 35 + 70 m/min
• connected load frequency 400 V
• capacity 90 degrees: round 220 mm
• capacity 90 degrees: square 210 x 210 mm
• capacity 90 degrees: flat 230 x 185 mm
• total power requirement 1,2 kW
• weight of the machine ca. 240 kg
• dimensions of the machine ca. 870 x 1550 x 1740 mm

• No additional information specified

• no accessories specified
