DatasheetBack

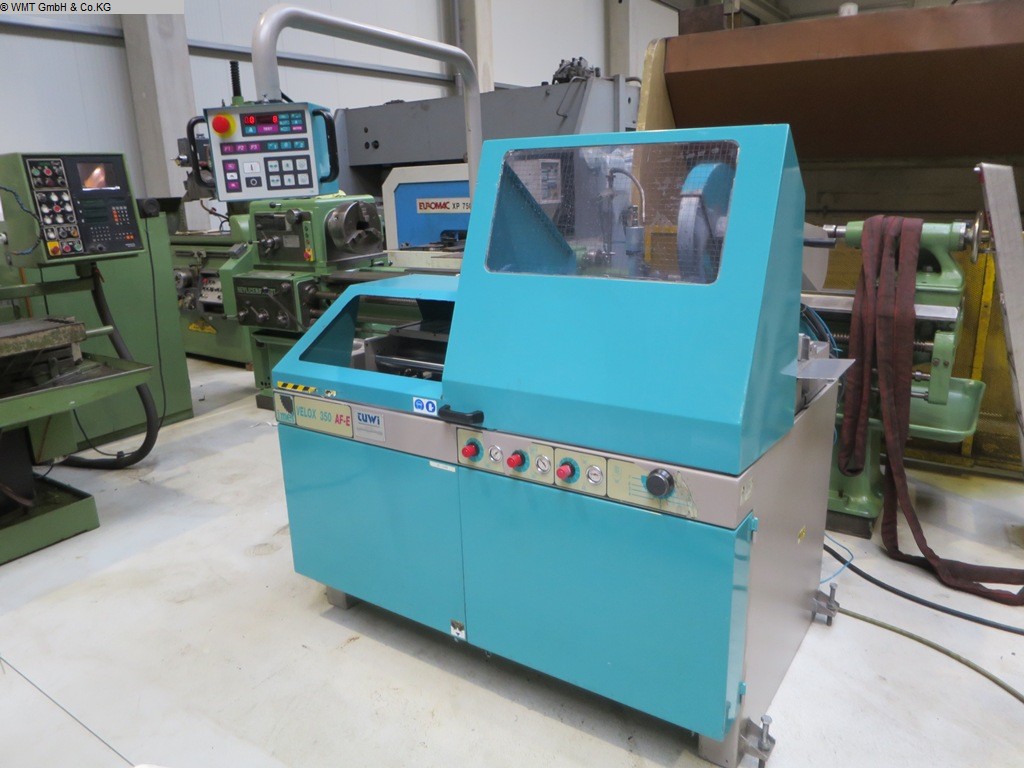

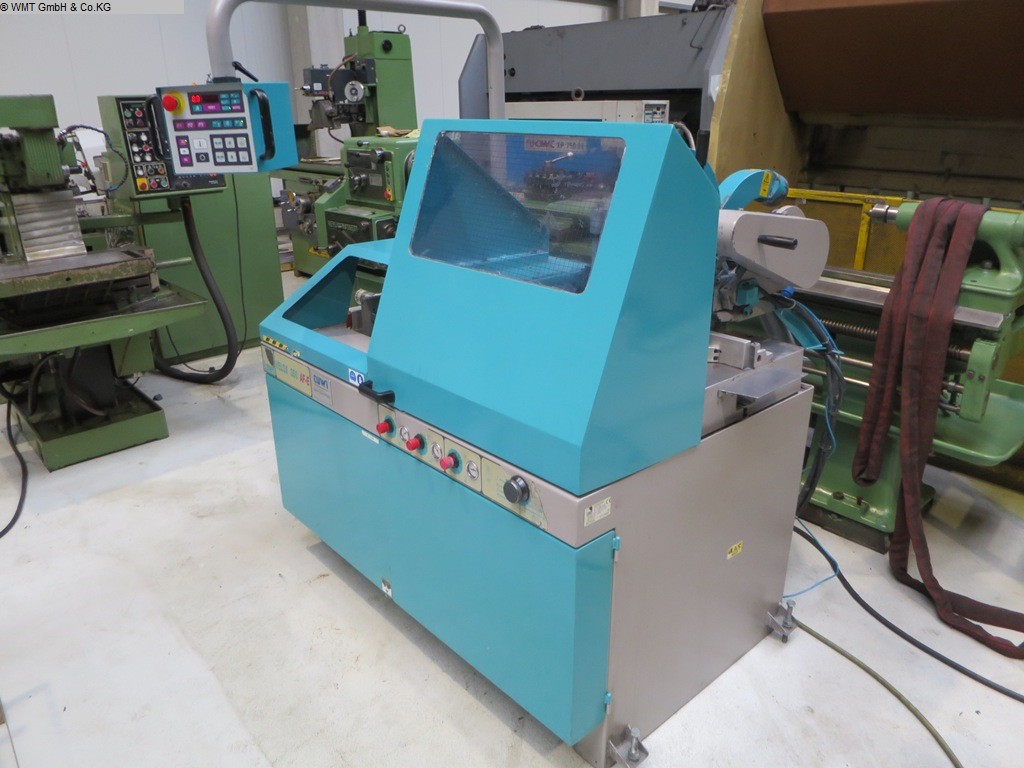

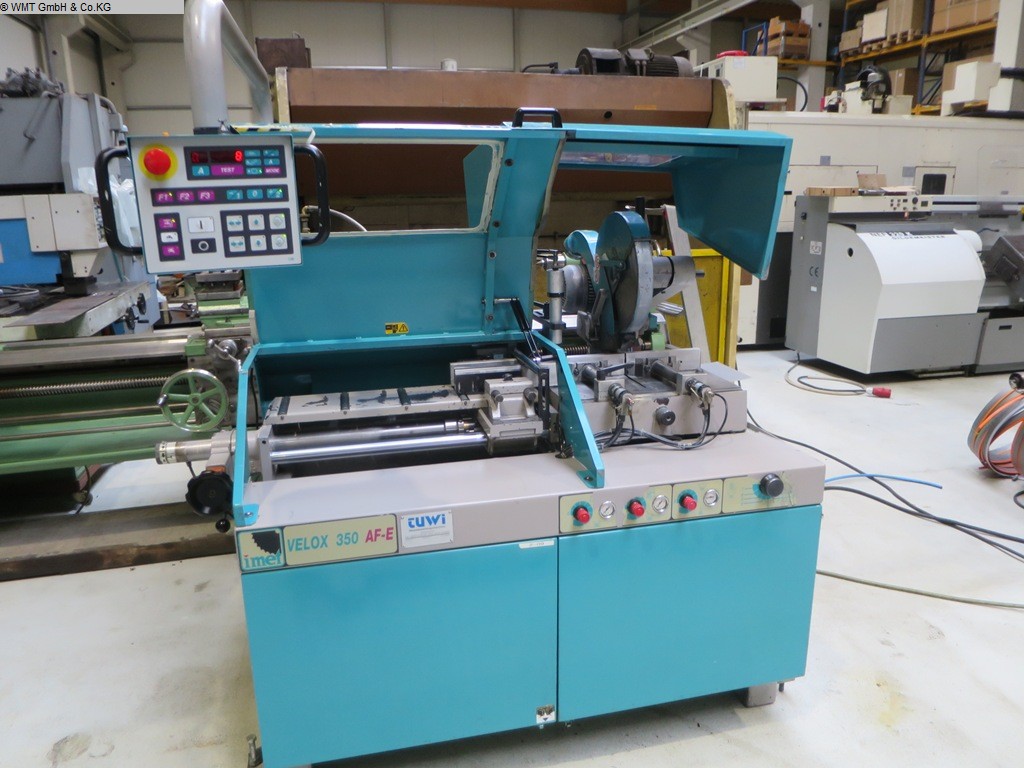

Aluminium Circular Saw - IMET - AF-E-CEB
- Stock number 1108-38949
- Category Aluminium Circular Saw
- Make IMET
- Type AF-E-CEB
- Build year 1997
- Control conventional
- Location 46342 Velen
- Origin Germany
- Delivery time on request
- Delivery ab Werk
- Price On request
Description
Fully automatic hydropneumatic machine · Left/right miter cuts · Head bevel cuts up to 45° (shifter) · Material feed unit with material clamp · Integrated coolant spray system · MPS control: · Saves cut start/end times · Displays power consumption, workpiece count, cutting time, etc. · Adjustable water cooling · Cutting pressure regulator
Technical details
- saw blade diameter 350 mm
- capacity 90 degrees: round 120 mm
- capacity 90 degrees: square 110 mm
- capacity 90 degrees: flat 200x88 mm
- capacity 45 degrees: round 115 mm
- capacity 45 degrees: square 110 mm
- capacity 45 degrees: square 150x80 mm
- total power requirement 1,5/1,8 kW
- weight of the machine ca. 0,59 t
- dimensions 1,9 x 1,4 x 1,8 m
Additional
- No additional information specified
Accessories
- no accessories specified
