Radial Drilling Machine - GILLARDON - GBR 50
- Stock number 1108-23637
- Category Radial Drilling Machine
- Make GILLARDON
- Type GBR 50
- Build year 1999
- Control conventional
- Location Velen-Ramsdorf (46342)
- Origin Germany
- Delivery time immediately
- Delivery ex Warehouse
- Price On request
Description
Radial drilling machine - Mounting cube 800 x 600 x 500mm - Coolant system - Good condition
Technical details
- bore capacity in steel (diameter) 50 mm
- arm length 1250 mm
- bore capacity in cast iron 60 mm
- spindle diameter mm
- quill stroke 300 mm
- tool taper MK 5

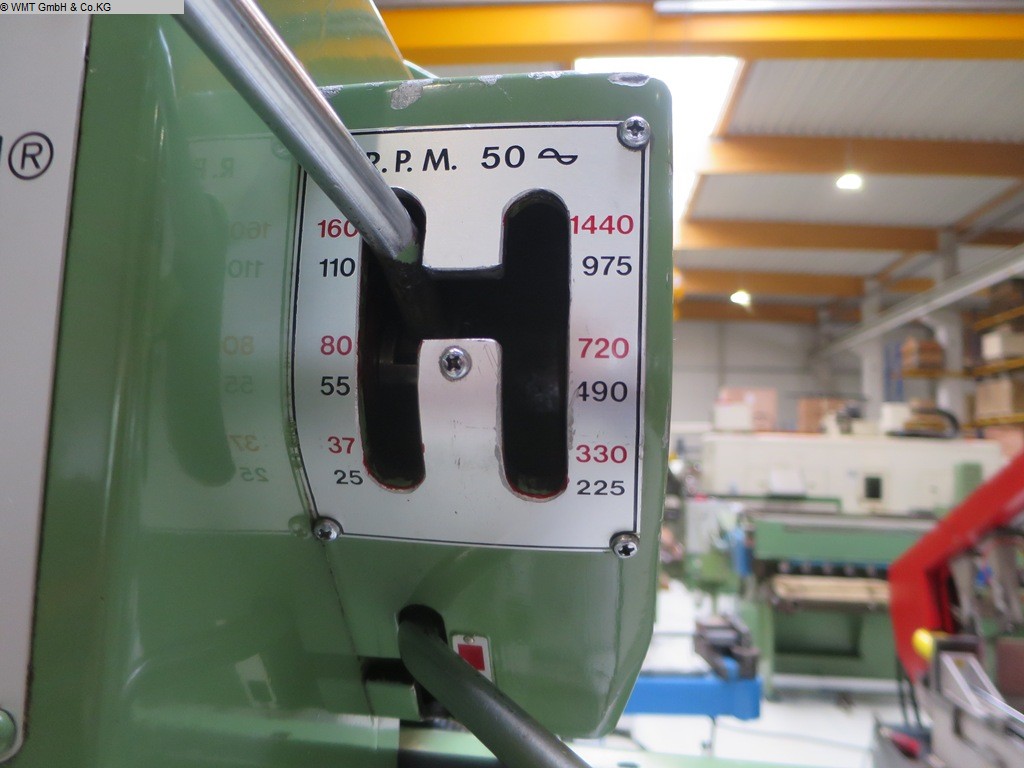

- speeds 25 - 1440 U/min
- feeds 0,08 bis 0,58 mm/U
- column diameter mm
- vertical adjustment of the arm mm
- thread cutting attachment ja
- Boring motor 4,0 kw
- weight of the machine ca. 2,4 t
- dimensions of the machine ca. 2,0 x 0,75 x 2,15 m
Additional
- No additional information specified
Accessories
- no accessories specified
