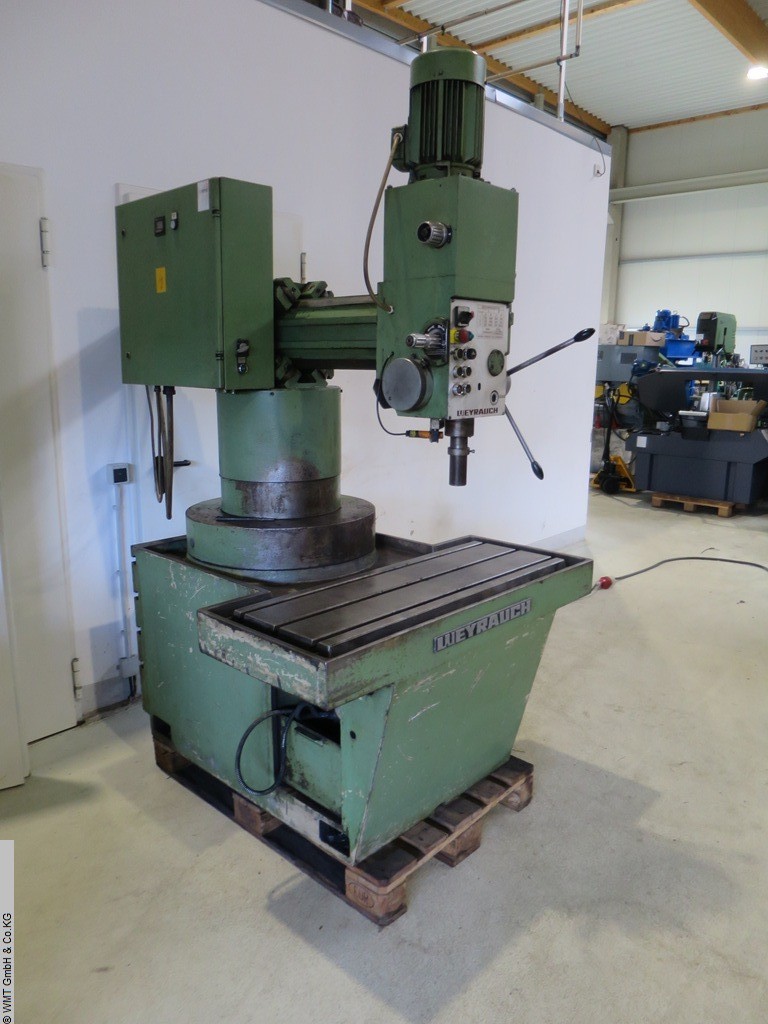

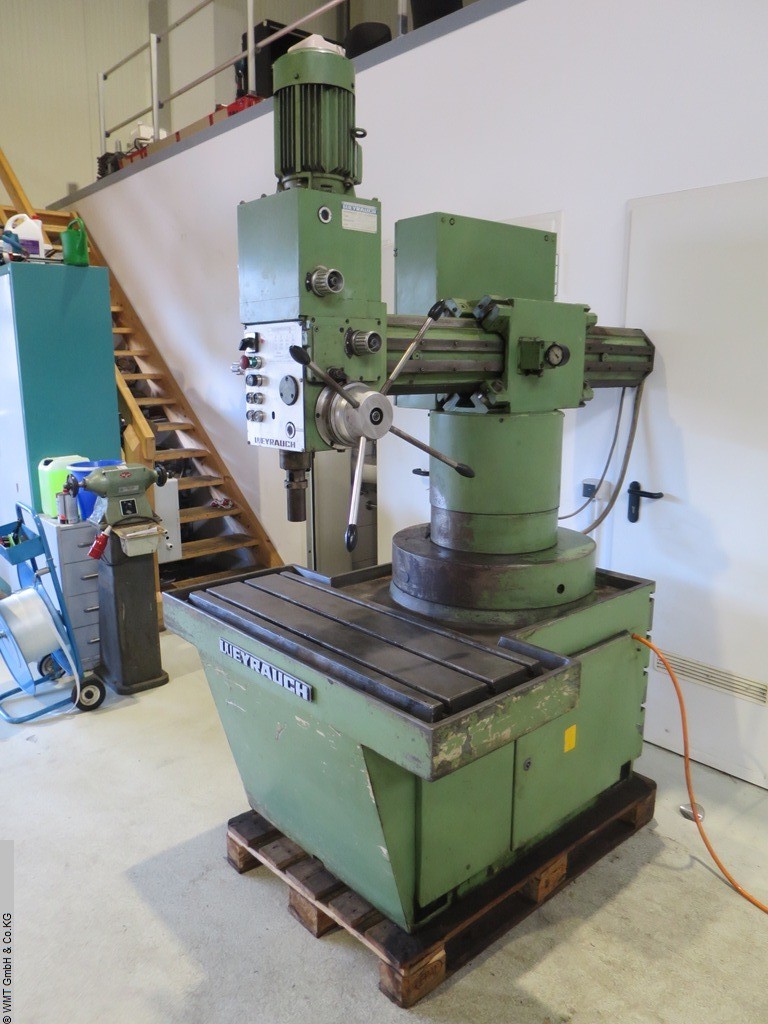

Rapid Radial Drilling Machine - WEYRAUCH - SW 32G
- Stock number 1108-23207
- Category Rapid Radial Drilling Machine
- Make WEYRAUCH
- Type SW 32G
- Build year
- Control conventional
- Location 46342 Velen
- Origin Swiss
- Delivery time immediately
- Delivery Ex Stock
- Price On request
Description
Compact style with hydraulic fast-clamping, motorised height adjustment, feeder device and thread-cutting device. Integrated coolant container in machine frame. Main switch.
Technical details
- bore capacity in steel (diameter) 32 mm
- arm length 950 mm

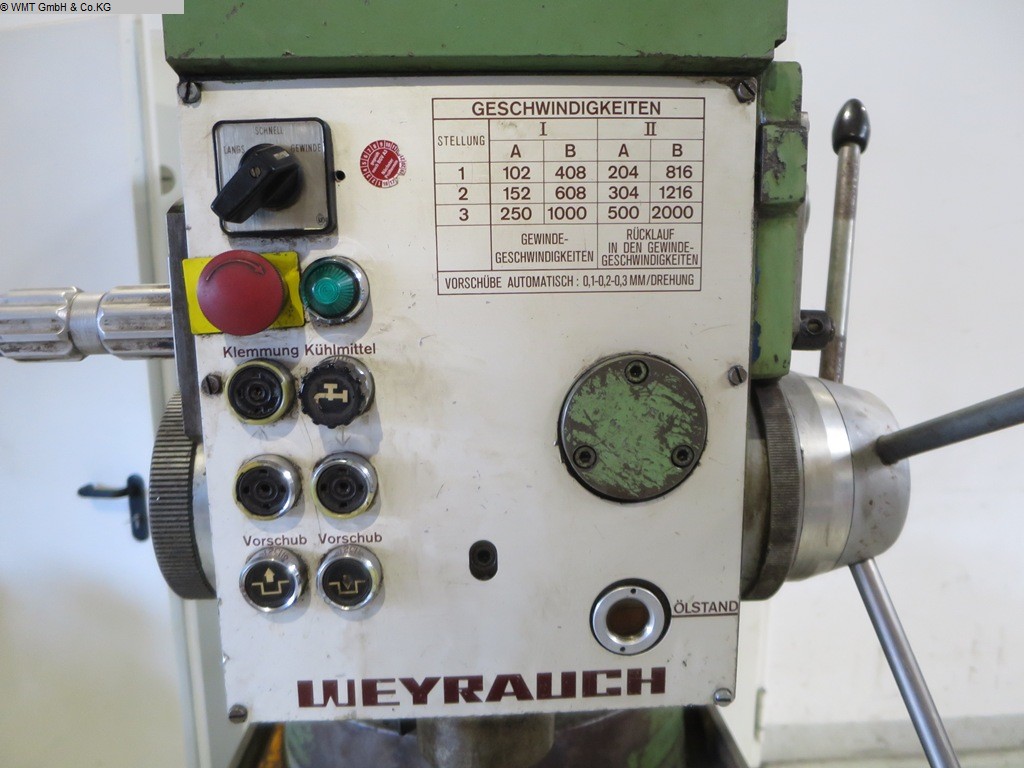

- turning speed range 102 - 2000 U/min
- turning speeds steps 12
- bore spindles - Morse Taper MK 4
- quill stroke 160 mm

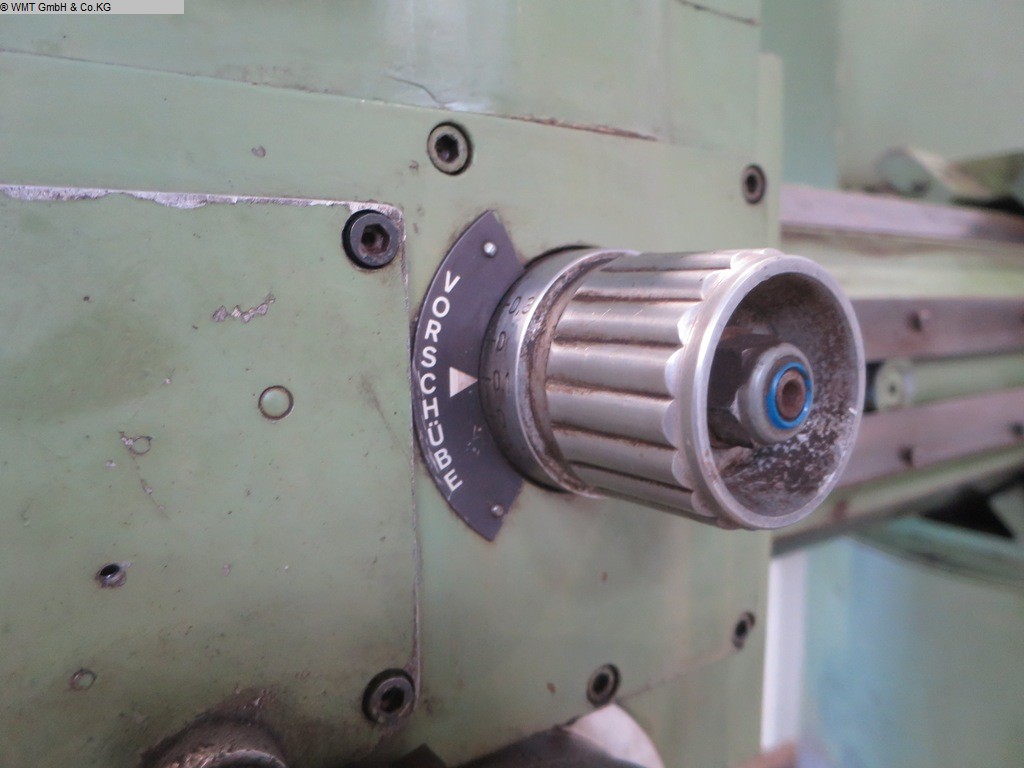

- feed range 0,075 x 0,3 mm/min
- table surface area 1200 x 510 mm
- total power requirement 2 kW
- weight of the machine ca. 1,9 t
- dimensions of the machine ca. 1,8 x 1,2 x 2,25 m
Additional
- No additional information specified
Accessories
- no accessories specified
