Drilling and Milling M/C - HBM - BF 16
- Stock number 1108-76013
- Category Drilling and Milling M/C
- Make HBM
- Type BF 16
- Build year -Neu-
- Control conventional
- Location 46342 Velen
- Origin Niederlande
- Delivery time sofort
- Delivery ab Lager
- Price On request
Description

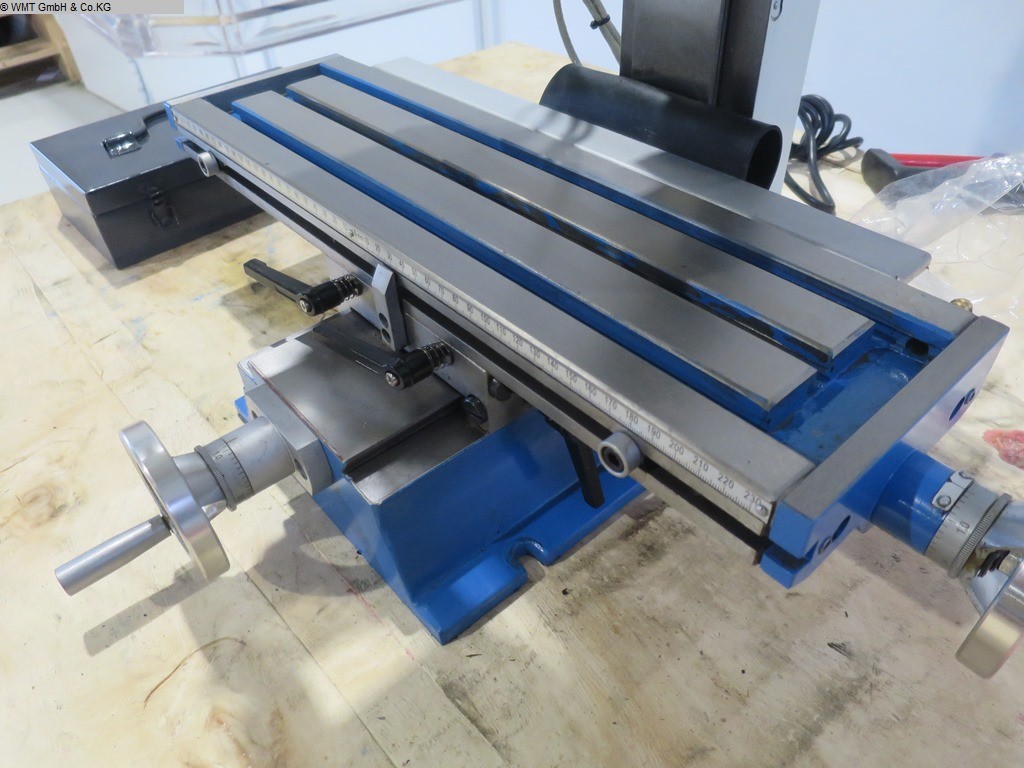

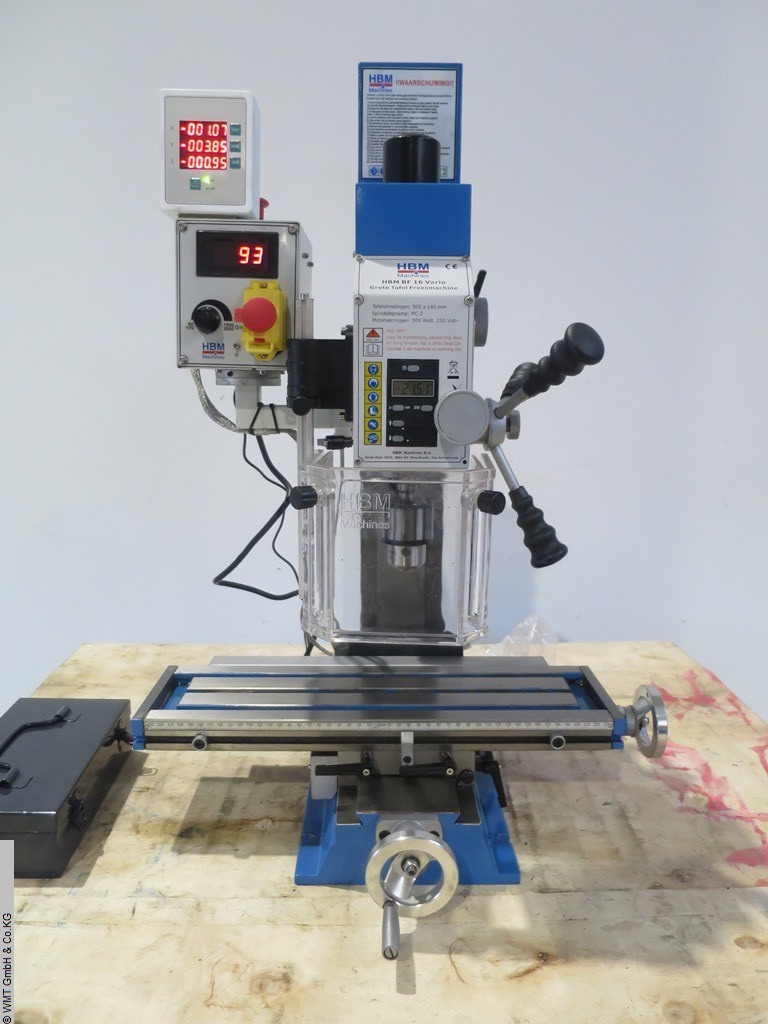

Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - swiveling spindle head - Feeds via hand crank - Tool case with content but without digital display !!
Technical details
- bore capacity in steel (diameter) 16 mm
- throat 170 mm
- bore stroke 50 mm
- spindle taper MK2
- spindle turning speed range 50 - 2250 U/min
- table surface area 500 x 140 mm
- connected load frequency 230 V
- total power requirement 0,5 kW
- weight of the machine ca. 90 Kg
- dimensions of the machine ca. 0,5 x 0,45 x 0,84 m
Additional
- No additional information specified
Accessories
- no accessories specified
