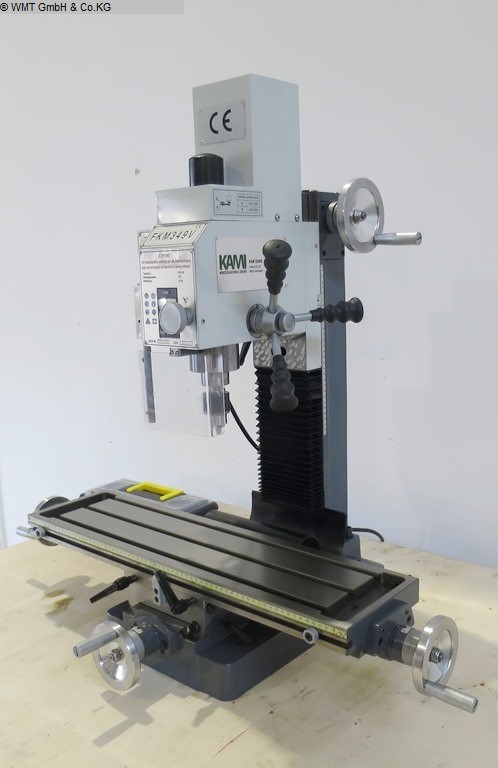

Drilling and Milling M/C - KAMI - FKM 349 V

  • Stock number 1108-76008
  • Category Drilling and Milling M/C
  • Make KAMI
  • Type FKM 349 V
  • Build year -Neu-
  • Control conventional
  • Location 46342 Velen
  • Origin Poland
  • Delivery time sofort
  • Delivery ab Lager
  • Price On request

Description

domestic equipments • Digital depth gauge • Adjustable guides with wedges • Large 12-speed range from 75 to 3200 rpm • Smooth running due to hardened and ground gears running in an oil bath • • Right-left rotation • Prismatic guides in all axes • Gear head can be swiveled 90 ° • Chip protection with safety circuit Machine base optional.

Technical details

  • bore capacity in steel (diameter) 25 mm
  • throat 185 mm
  • bore stroke 50 mm
  • spindle taper MK 3
  • spindle turning speed range 50 - 2500 U/min

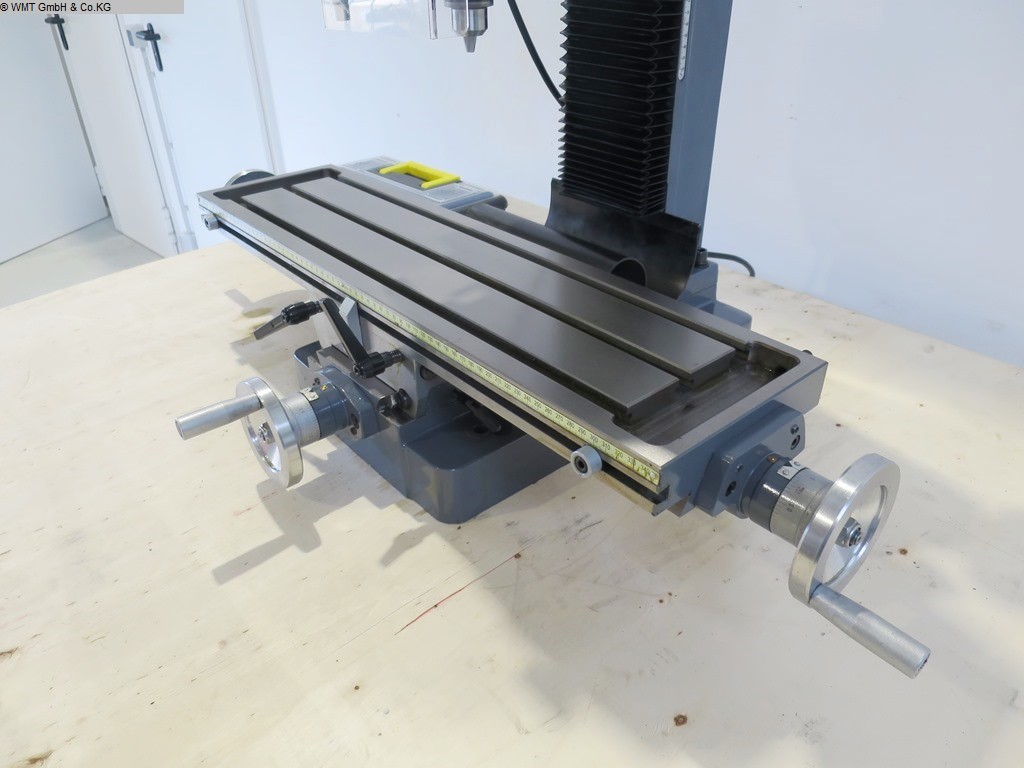

  • table surface area 700 x 180 mm
  • connected load frequency 230 V
  • total power requirement 0,75 kW
  • weight of the machine ca. 160 t
  • dimensions of the machine ca. 0,75 x 0,8 x 0,9 m

Additional

  • No additional information specified

Accessories

  • no accessories specified

Videos

No Videos


Documents

1108-76008
Drilling and Milling M/C KAMI FKM 349 V
