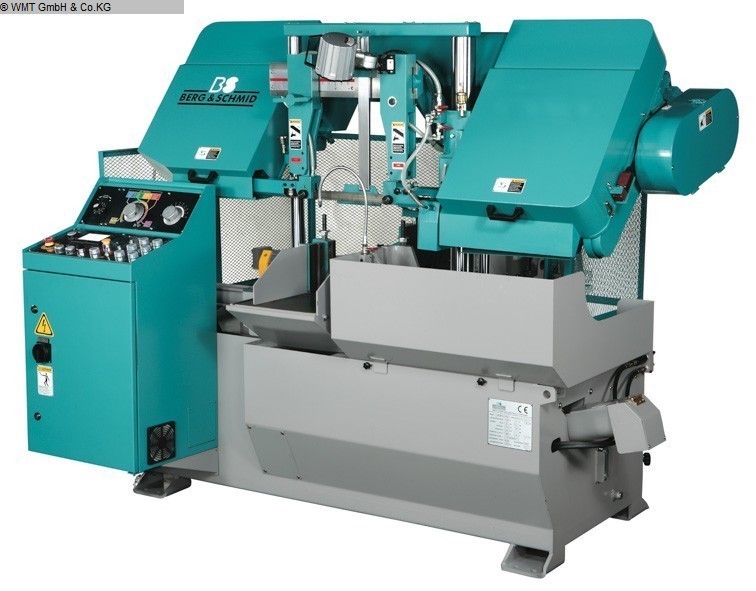

Band Saw - Automatic - Horizontal - BERG & SCHMID - SBS 550 VA-I / CNC

  • Stock number 1108-66275
  • Category Band Saw - Automatic - Horizontal
  • Make BERG & SCHMID
  • Type SBS 550 VA-I / CNC
  • Build year -neu-
  • Control CNC
  • Location Germany
  • Origin Germany
  • Delivery time sofort
  • Delivery ab Werk
  • Price On request

Description

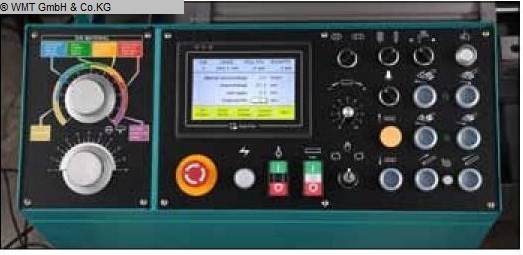

PROMOTIONAL PRICE!!!! 2-column high-performance automatic band saws from the SBS series The SBS series impresses with its sophisticated technology, high quality and longevity and unrivaled, sophisticated standard equipment. • Modern SNC 20 control for CNC version • Frequency-controlled saw drive • Control buttons with pictograms • Work light • Powered chip brush • Hydraulic belt tension • Clamping pressure regulation • Double vice (before and after the belt) • Creep path for positioning • Bundle tension prepared electrically and hydraulically • Chip conveyor The SNC 20 control allows you to enter up to 20 different sawing tasks (length and number of pieces) conveniently and easily. When the target dimension is entered, the control automatically calculates the saw waste and the number of feeds. Additionally, the error code display system provides quick analysis for troubleshooting.

Technical details

  • saw band length 5980 x 41 x 1,3 mm
  • table height 800 mm
  • band speed 20 - 100 m/min
  • total power requirement 5,5 kW
  • weight of the machine ca. 3,8 t
  • dimensions 3,0 x 2,15 x 2,2 m

Additional

  • No additional information specified

Accessories

  • no accessories specified

Videos

No Videos


Documents

1108-66275
Band Saw - Automatic - Horizontal BERG & SCHMID SBS 550 VA-I / CNC
