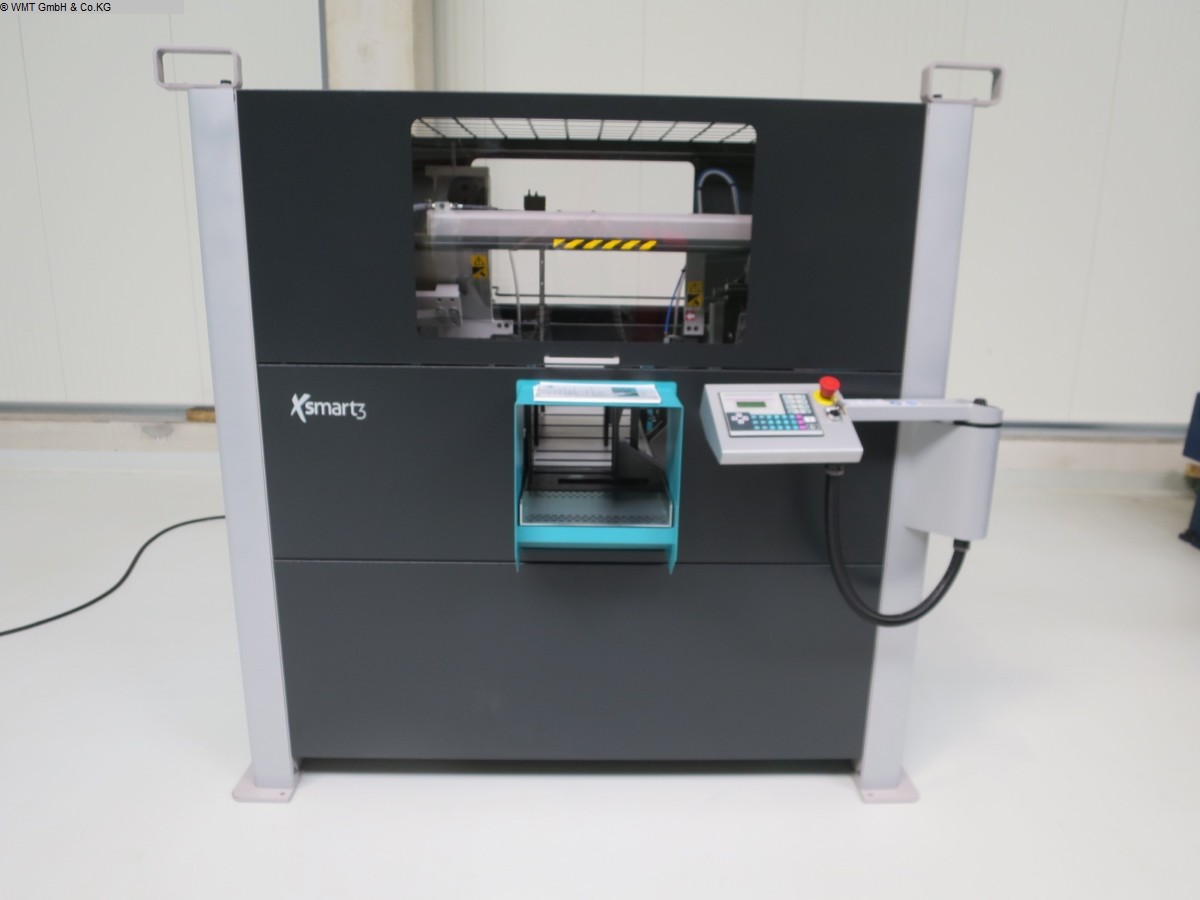

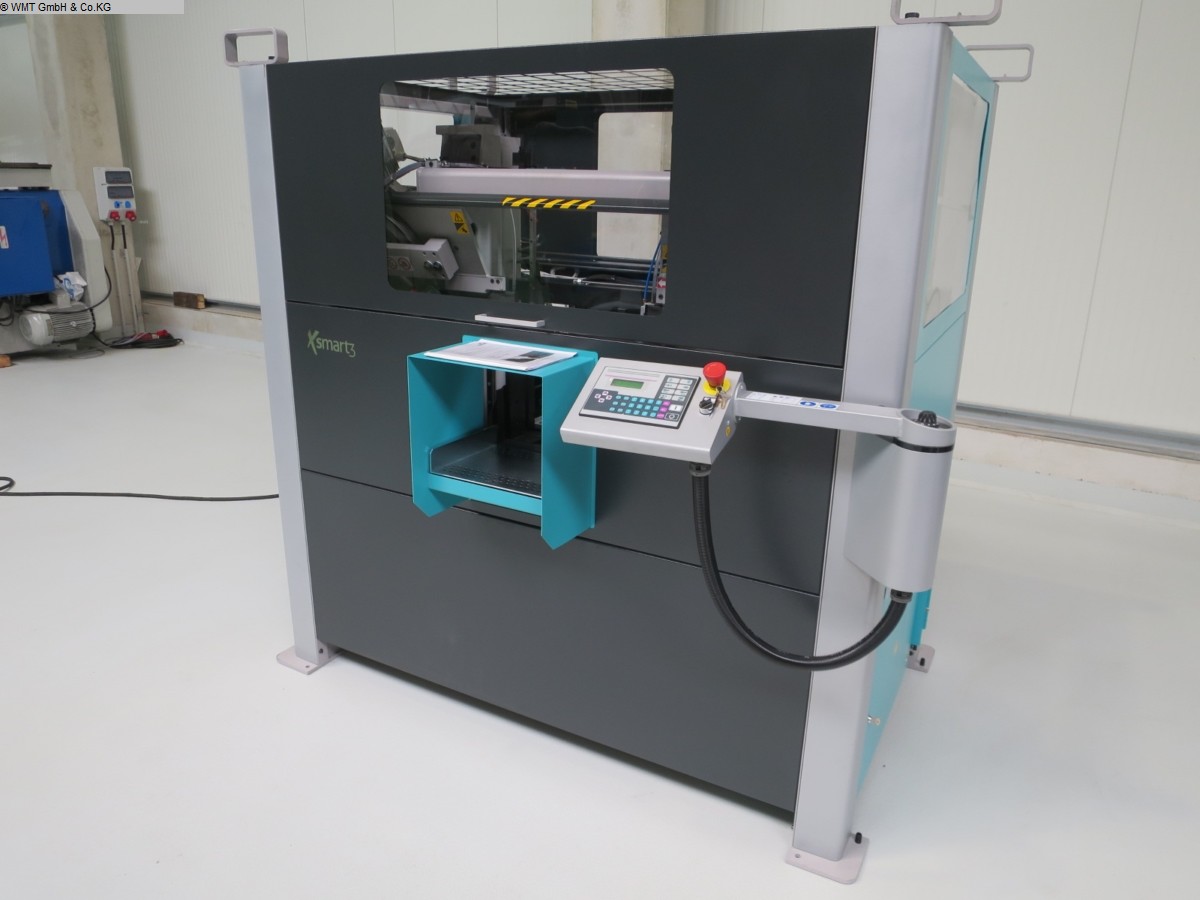

2-column automatic band saw X-Smart 3 • Modern CNC control, freely programmable for multiple sawing jobs various cutting lengths and quantities • Inclination of the saw frame for maximum service life of the saw band • 2-column structure linearly guided on both sides • Linear guided button for automatic cutting height detection • Hydraulic clamping pressure reduction (option) for thin-walled pipes and profiles • Hydraulic cutting pressure regulation for maximum cutting performance • Material feed carriage in bridge construction for optimal performance Transport/feed and tension of the saw material • Feed unit via precision ball screw • Double vise before and after the saw band • Electrically driven chip conveyor • Cleaning gun for easy cleaning of the system • Full fairing with easy access for maintenance and cleaning • LED work light • Minimum remaining piece length of 50 mm • Waistband tensioning device (option)

• saw band length 3730 x 34 x 1,1 mm
• table height 922 mm
• band speed 15 - 100 m/min
• total power requirement 3,0 kW
• weight of the machine ca. 1,65 t
• dimensions 1950x1755 m

• No additional information specified

• no accessories specified
