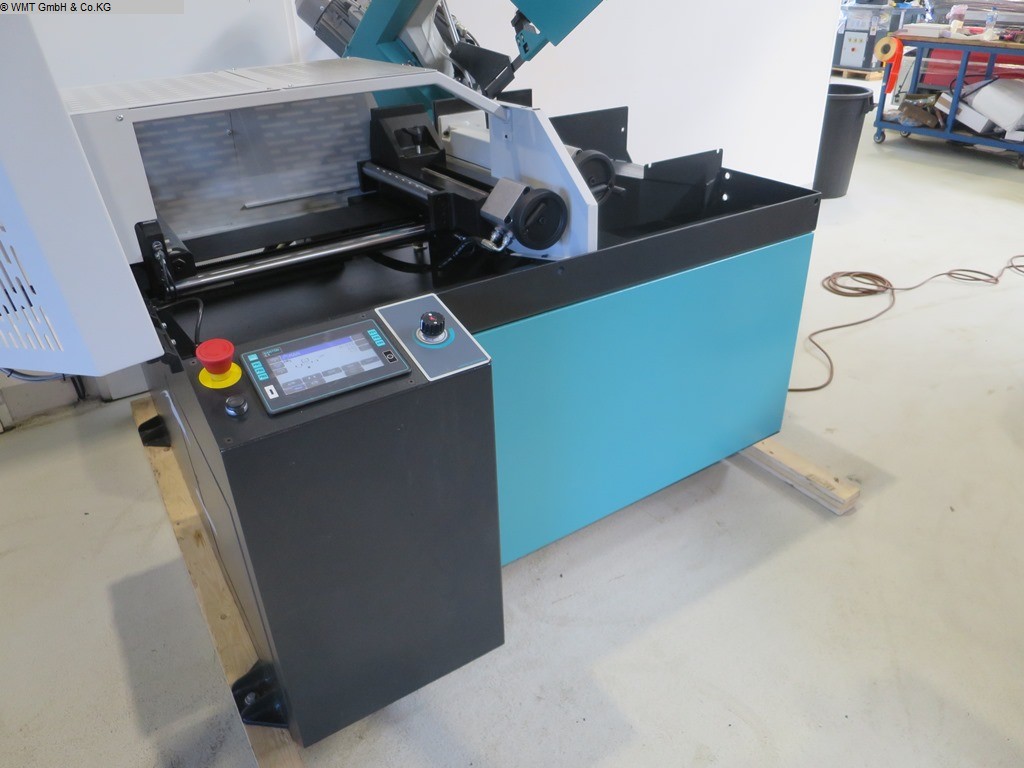

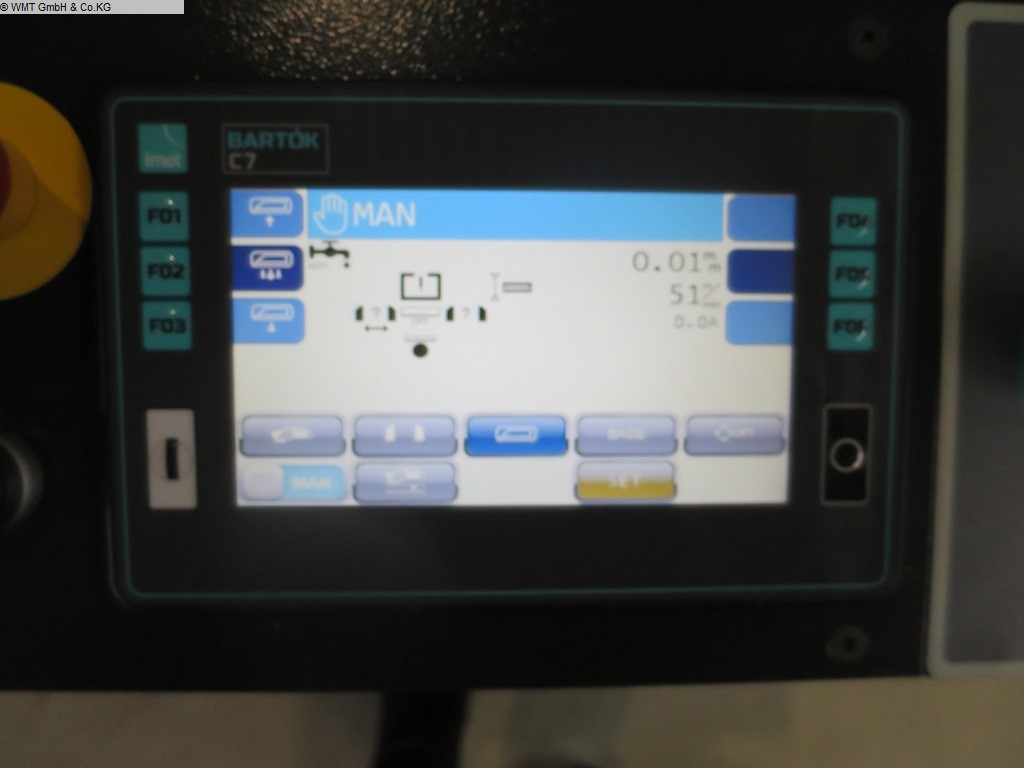

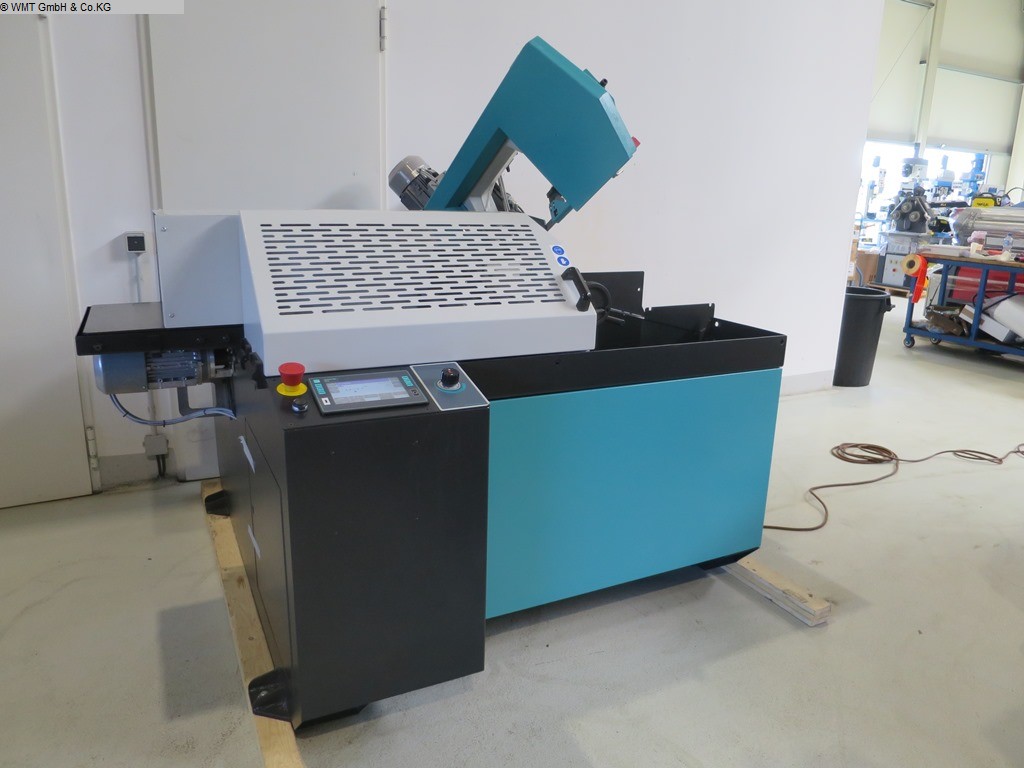

Miter band saw, fully automatic GBS 255 Super VA-I CNC • miter left 45° automatic operation • miter left 60° semi-automatic operation (cuts without programming) • Material height sensor (automatic cut start detection) • Frame and gearbox made from one piece, very quiet cut and very low vibration • Removable chip tray (disinfection) • Shockproof and ergonomic control panel with oil-resistant EPDM cover • High performance positioning with incremental encoder (CNC) c. • Top access to the saw, material and feed unit • Hinged safety cover • Fine feed adjustment • Semi-auto. Cut! • Optimize work processes with CNC control Possibility to enter various parameters such as quantities and material lengths, automatic calculation of the cutting channel • CNC control for 10 different saw programs with 99 sub-programs for different lengths and quantities, e.g. 1 cutting program with various section lengths • Automatic feed unit (CNC) via ball roller spindle incremental feed with automatic length compensation. Adjustable for section lengths of 2 mm to 9,999 mm, remainder length 170 mm.

• capacity 90 degrees: round 255 mm
• capacity 90 degrees: square 240 mm
• saw band length 2.765 x 27 x 0,9 mm mm
• table height 870 mm
• band speed 18 - 110 m/min
• Control CNC
• total power requirement 1,5/1,8 kW
• weight of the machine ca. 0,63 t
• dimensions of the machine ca. 1,8 x 1,85 x 1,85 m

• No additional information specified

• no accessories specified
