DatasheetBack

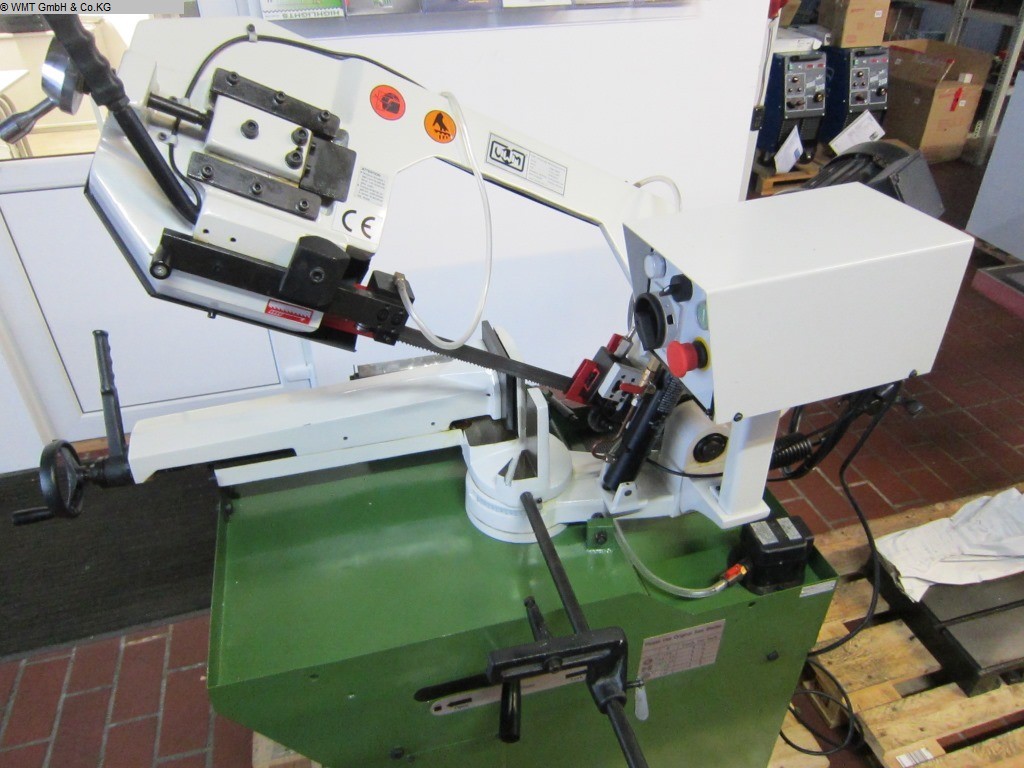

Bandsaw - Horizontal - UWM - 260G

  • Stock number 1108-66206
  • Category Bandsaw - Horizontal
  • Make UWM
  • Type 260G
  • Build year -Neu-
  • Control conventional
  • Location Germany
  • Origin Netherlands
  • Delivery time immediately
  • Delivery ab Lager
  • Price On request

Description

Miter band saw - automatic cut - Base frame - Coolant pump - Chip brush for cleaning the saw band - Vise with quick adjustment

Technical details

  • cutting diameter 227 mm
  • saw band length 2455 mm
  • table height 840 mm
  • cutting width 260 mm
  • turning speed range: 36 / 72 m/min
  • dimensions of saw-band 2455 x 27 x 0,9 mm
  • capacity 90 degrees: round 227 mm
  • capacity 90 degrees: square 220 mm
  • capacity 90 degrees: flat 260 x 220 mm
  • capacity 45 degrees: round 150 mm
  • capacity 45 degrees: square 145 mm
  • capacity 45 degrees: flat 200 x 220 mm
  • total power requirement 1,5 kW
  • weight of the machine ca. 0,25 t
  • dimensions of the machine ca. 0,8 x 1,4 x 1,5 m

Additional

  • No additional information specified

Accessories

  • no accessories specified

Videos

No Videos


Documents

1108-66206
Bandsaw - Horizontal UWM 260G
