DatasheetBack

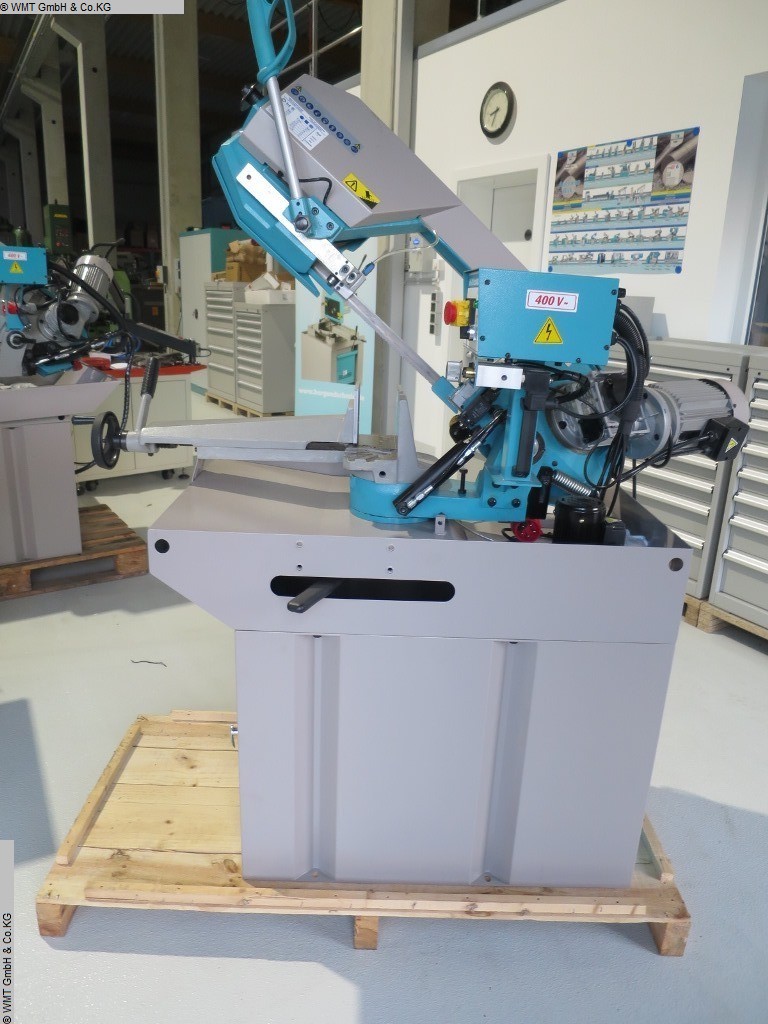

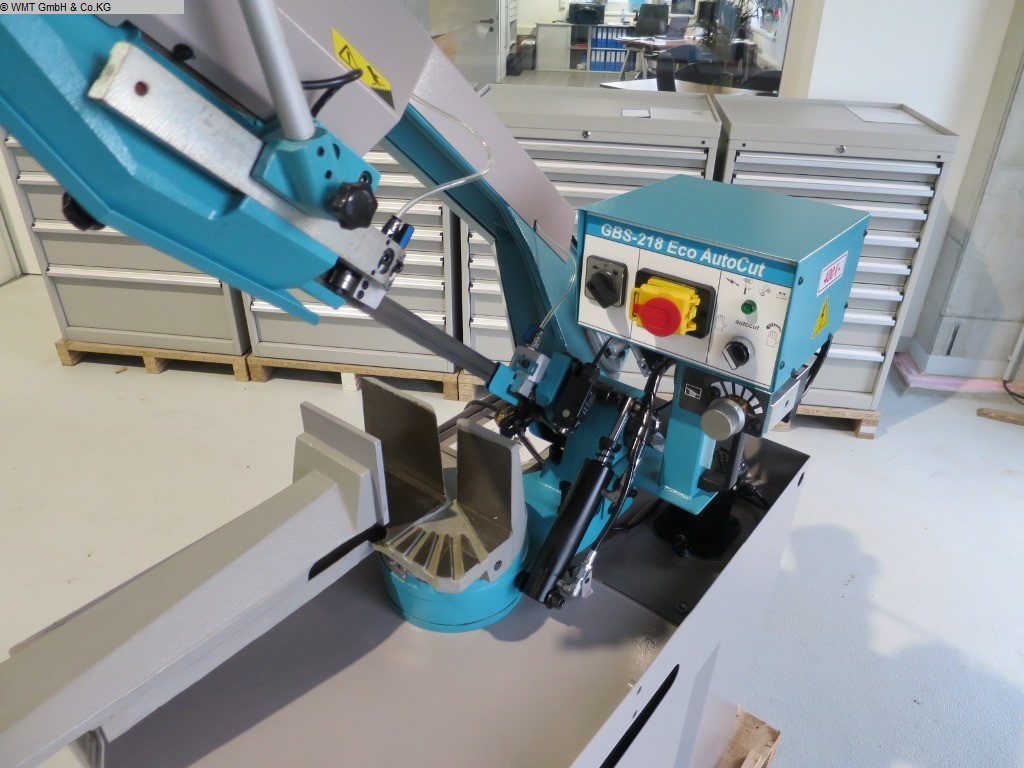

Bandsaw - Horizontal - BERG & SCHMID - GBS 218 Eco AutoCut

  • Stock number 1108-66203
  • Category Bandsaw - Horizontal
  • Make BERG & SCHMID
  • Type GBS 218 Eco AutoCut
  • Build year -NEU-
  • Control conventional
  • Location 46342 Velen
  • Origin Germany
  • Delivery time sofort
  • Delivery ab Werk
  • Price On request

Description

SPECIAL PRICE!!! -Miter cuts up to 60° left - Cutting speed 25 - 80m/min. - Vice with quick release device -Carbide saw band guide -Tape tension control -Electr. automatic cooling Auto-Cut-System = 3 step system -Automatic saw frame lowering via the hydraulic cylinder -Infinitely adjustable feed -with limit switch - rapid lowering of the saw frame from the rest position to the workpiece, then switch to normal saw feed -Manual mode

Technical details

  • cutting diameter 220 mm
  • saw band length 2455 mm
  • table height 850 mm
  • cutting width 230 mm
  • cutting speed 25 - 80 m/min
  • dimensions of saw-band 2455 x 27 x 0,9 mm
  • Impact energy 150
  • Air consume per blow 150 x 210
  • stroke back stop 210 mm
  • cross-slide 230 x 185
  • total power requirement 1,2 kW
  • weight of the machine ca. 0,24 t
  • dimensions of the machine ca. 1,2 x 0,6 x 1,7 m

Additional

  • No additional information specified

Accessories

  • no accessories specified

Videos

No Videos


Documents

1108-66203
Bandsaw - Horizontal BERG & SCHMID GBS 218 Eco AutoCut
